Near-field measurements play a crucial role in RF design, EMC testing, and antenna characterization.
Engineers rely on these measurements to reconstruct far-field patterns and analyze electromagnetic behavior.
However, one of the most critical challenges in this process is aliasing, which occurs when sampling
is not done correctly.
Aliasing can distort measurement data, leading to inaccurate conclusions and potential compliance failures.
Understanding and applying the correct sampling criteria ensures that your measurements remain reliable and
meaningful.
Understanding Sampling in Near-Field Measurements
Sampling refers to measuring electromagnetic fields at discrete spatial intervals over a defined surface.
Since continuous measurement is not practical, engineers rely on grid-based sampling.
In simple terms, sampling determines how much detail you capture.
Key ideas to remember:
- Measurements are taken on a grid (planar, cylindrical, or spherical)
- Each point represents field amplitude and phase
- The spacing between points defines resolution
If the spacing is too large, important field variations are missed.

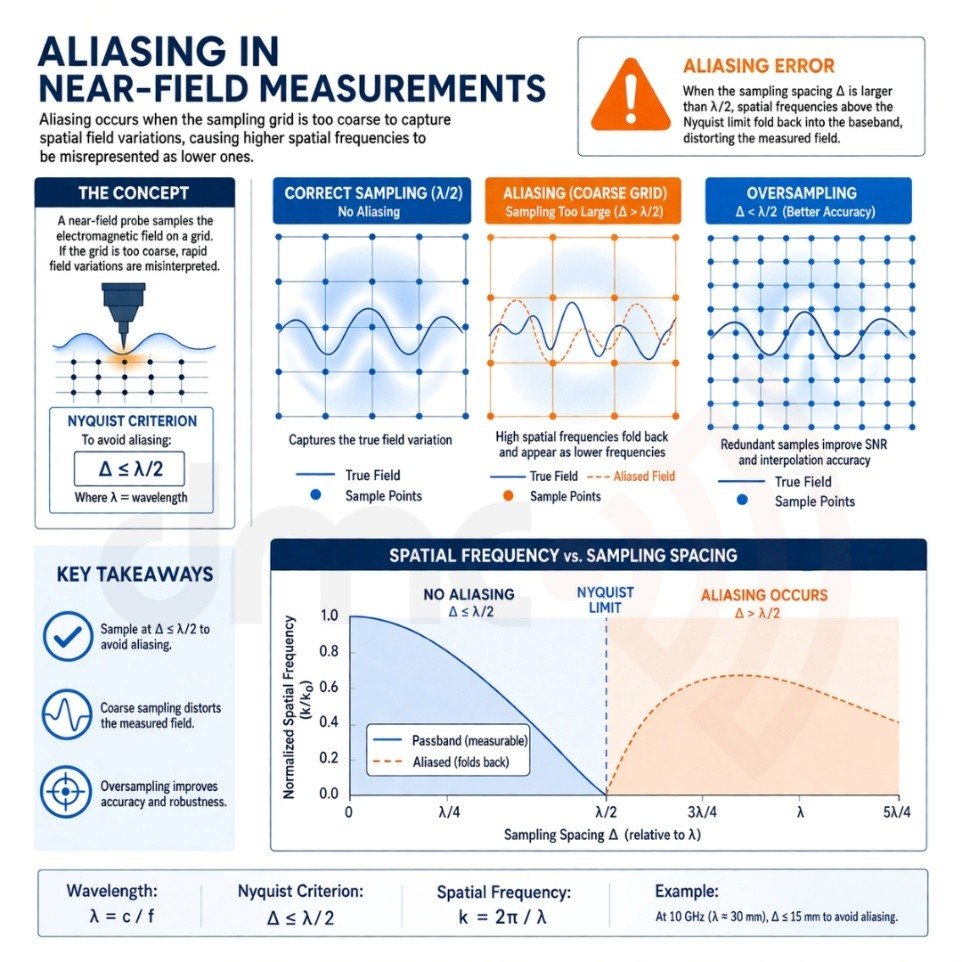

What is Aliasing and Why It Happens
Aliasing occurs when the sampling grid is too coarse to capture high-frequency spatial variations. This
causes high-frequency components to appear as false lower-frequency patterns.
In near-field testing, this can severely impact accuracy and interpretation.
Effects of aliasing include:
- Distorted far-field reconstruction
- False radiation lobes
- Loss of fine electromagnetic details
- Misleading compliance results
In practice, once aliasing occurs, it cannot be corrected after measurement.
Sampling Criteria: The Fundamental Rule
To avoid aliasing, sampling must follow a spatial version of the Nyquist criterion. This ensures that all
significant field variations are captured.
Core guideline:
- Sampling spacing must be ≤ λ/2 (half wavelength)
However, real-world conditions often demand stricter spacing.
Practical recommendations:
- Use λ/3 to λ/4 for better accuracy
- Oversample when dealing with complex DUTs
- Reduce spacing at higher frequencies
This ensures that no critical information is lost.
Recommended Sampling Guidelines
Below is a practical reference for selecting sampling spacing:
| Frequency (GHz) | Wavelength (mm) | Max Spacing (mm) | Recommended (mm) |
|---|---|---|---|
| 1 GHz | 300 mm | 150 mm | 100 mm |
| 3 GHz | 100 mm | 50 mm | 30–40 mm |
| 6 GHz | 50 mm | 25 mm | 15–20 mm |
| 10 GHz | 30 mm | 15 mm | 8–10 mm |
| 18 GHz | 16.7 mm | 8 mm | 4–6 mm |
This table highlights how sampling becomes denser as frequency increases.
Factors That Influence Sampling Requirements
Several factors affect how fine your sampling grid should be. Ignoring these can lead to errors even if
basic rules are followed.
Important factors include:
- Frequency range of operation
- Size and complexity of the DUT
- Distance between probe and DUT
- Type of scanning geometry
- Measurement environment
Higher complexity generally requires tighter sampling.
Common Mistakes to Avoid
Many engineers compromise on sampling to reduce measurement time, but this often leads to inaccurate
results.
Avoid these mistakes:
- Using overly coarse grids
- Ignoring high-frequency components
- Assuming uniform field distribution
- Skipping validation steps
- Not accounting for probe effects
Careful planning can prevent these issues.
Pro Tip
Always oversample beyond the theoretical limit.
In practical environments, factors like reflections, noise, and probe imperfections introduce additional
complexity. Using a sampling grid that is 20–30% finer than required significantly improves accuracy and
reliability.
Probe Selection and Compensation Techniques in Near-Field Testing
While proper sampling ensures data completeness, probe selection determines how accurately that data is
captured. The probe acts as the interface between the electromagnetic field and the measurement system.
Choosing the wrong probe can introduce errors even if sampling is perfect.
Types of Near-Field Probes
Different probes are designed for different measurement needs. Selecting the correct type depends on the
application.
Common probe types:
- Electric field (E-field) probes for voltage-related measurements
- Magnetic field (H-field) probes for current-related analysis
- Hybrid probes for advanced diagnostics
Each type has specific strengths and limitations.
Probe Selection Criteria
When selecting a probe, several parameters must be evaluated carefully.
Key considerations:
- Frequency range compatibility
- Spatial resolution requirements
- Sensitivity to weak signals
- Physical size of the probe
- Calibration availability
A smaller probe generally provides better spatial resolution.
Compensation Techniques for Accurate Measurements
Even well-designed probes introduce measurement distortion. Compensation techniques help correct these
errors and improve accuracy.
Common techniques include:
- Calibration-based correction
- Transfer function compensation
- De-embedding methods
- Numerical reconstruction algorithms
These techniques are especially important in high-frequency applications.
Best Practices for Probe Usage
Proper handling and setup of probes are essential for consistent results.
Best practices:
- Calibrate probes before use
- Maintain consistent orientation
- Avoid disturbing the DUT
- Minimize cable interference
- Validate results with references
Consistency is key to reliable measurements.
Combining Sampling and Probe Strategy
Accurate near-field measurement requires both correct sampling and proper probe usage. These two aspects
must work together.
For best results:
- Use sufficiently dense sampling grids
- Choose probes suited to your application
- Apply compensation techniques
- Validate results with simulations or benchmarks
This integrated approach ensures high-quality data.
Near-field measurements demand precision and attention to detail. Proper sampling criteria help avoid
aliasing errors, while correct probe selection ensures accurate data capture.
By combining these practices, engineers can significantly improve measurement reliability and achieve
more accurate electromagnetic analysis.
