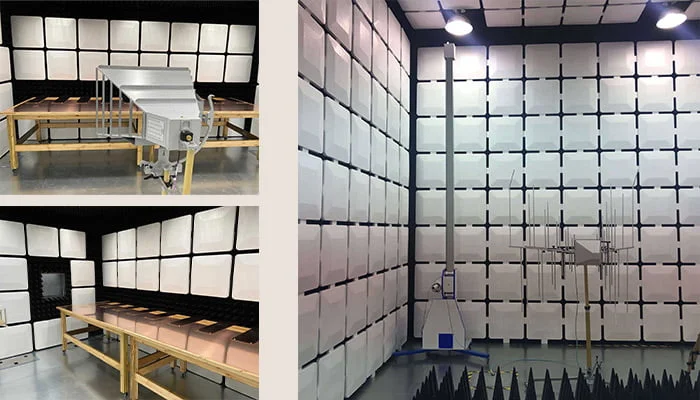

DMC offers full Turn-Key Solution for Fully Anechoic and Semi anechoic Chambers for Compliant and Pre-compliant EMC testing for Commercial, Automotive, Military and Education Sector at 3 meter, 5 meter and 10 meter test distance. DMC Installers are highly Qualified with over 30 years of Experience installing EMC Chambers and Antenna Chambers all over Canada and USA.

DMC-SAC-3M
Semi Anechoic 3Meter EMC Chamber


Anechoic Compact EMC chambers are useful for pre-compliance emissions and compliant immunity testing with limited space availability in the host building. It provides test capability at 3 meter test distance with up to 1.2 meter quite zone and repeatable results These anechoic chamber provides multi-purpose environment of semi-anechoic configuration with reflective ground plane to fully anechoic configuration with absorbers on floor for free space measurements.

EMC Chambers

DMC-FAC-3M
Fully Compliant 3Meter EMC Chamber


DMC-FAC-3M is a Fully-Anechoic Chamber or referred as FAR Chamber with 3 meter measurement distance. This chamber is similar to a semi-anechoic chamber, except absorbers are placed on ground plane as well to simulate a free space environment. It is made up of DSS-2 series self-standing shielding, ferrite tiles and Polypropylene based hybrid absorbers on all walls, ceiling and floor. DMC-FAC-3M can be used for fixed height pre-compliant radiated emissions as per CISPR-16-1-4 and compliant radiated immunity measurements as per IEC 61000-4-3 .

DMC-SAC-5M
Semi Anechoic 5Meter EMC Chamber


DMC-SAC-5M is a semi-anechoic chamber for radiated emissions and radiated immunity testing at 3 meter or 5 meter test distance. The chamber is designed for compliant emission and immunity testing. The self-standing steel structure with DSS-2 series PAN-type modular shielding system per MIL-STD-285 and unique arrangement of Polypropylene based hybrid absorbers in specular areas with high performance ferrite tiles provides broadband performance up to 40 GHz. DMC 5 meter compliant test chambers has flexibility to provide customers with customised solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations.

EMC Chambers

DMC-SAC-10
Semi Anechoic 10Meter EMC Chamber


DMC-SAC-10M is a multifunctional anechoic chamber for commercial, automotive and military testing at 10 meter test distance with various quite zone options of up to 6 m. The chamber is designed for compliant emission and immunity testing. The self-standing steel structure with DSS-2 series PAN-type modular shielding system per MIL-STD-285 and unique arrangement of Polypropylene based hybrid absorbers in specular areas with high performance ferrite tiles provides broadband performance up to 40 GHz. DMC 10 meter compliant test chambers has flexibility to provide customers with customised solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations.

Antenna Chamber- DMC-ANC Series

Antenna Measurement Anechoic Chamber

Antenna Measurement Anechoic Chamber
DMC offers Turn key Antenna measurement system built-in with DMC-ANC Anechoic chamber room for testing low band high band sub millimeter wave and Millimeter wave application. Whether it’s the latest 5G, telecommunications, radar or other wireless technologies each chamber is uniquely designed to meet the needs of the antennas under test.

Adaptable and configurable for military, marine, aerospace and commercial applications each facility gives the user a reliable and repeatable testing environment for antenna testing and antenna specification characterization.
