Massive MIMO (Multiple Input Multiple Output) is the backbone of modern 5G and upcoming 6G wireless systems. By using dozens or even hundreds of antenna elements, Massive MIMO dramatically improves spectral efficiency, coverage, and network capacity.
However, with greater complexity comes greater testing challenges.
Unlike traditional RF systems where conducted testing was sufficient, Massive MIMO systems require Over-the-Air (OTA) testing to evaluate real-world performance. Since antenna arrays and RF components are tightly integrated, physical cable-based measurements are no longer practical.
In this blog, we explore the key Over-the-Air testing challenges for Massive MIMO systems, why they matter, and how engineers overcome them.
Why OTA Testing is Critical for Massive MIMO
Massive MIMO systems rely heavily on:
- Beamforming
- Spatial multiplexing
- Adaptive radiation patterns
- Dynamic power control
Because these systems operate as integrated antenna-radio units (Active Antenna Systems), separating antenna testing from RF testing is impossible. OTA testing evaluates:
- Total Radiated Power (TRP)
- Total Isotropic Sensitivity (TIS)
- 3D radiation patterns
- Beam steering accuracy
- EIRP distribution
Without OTA validation, real-world network performance cannot be guaranteed.

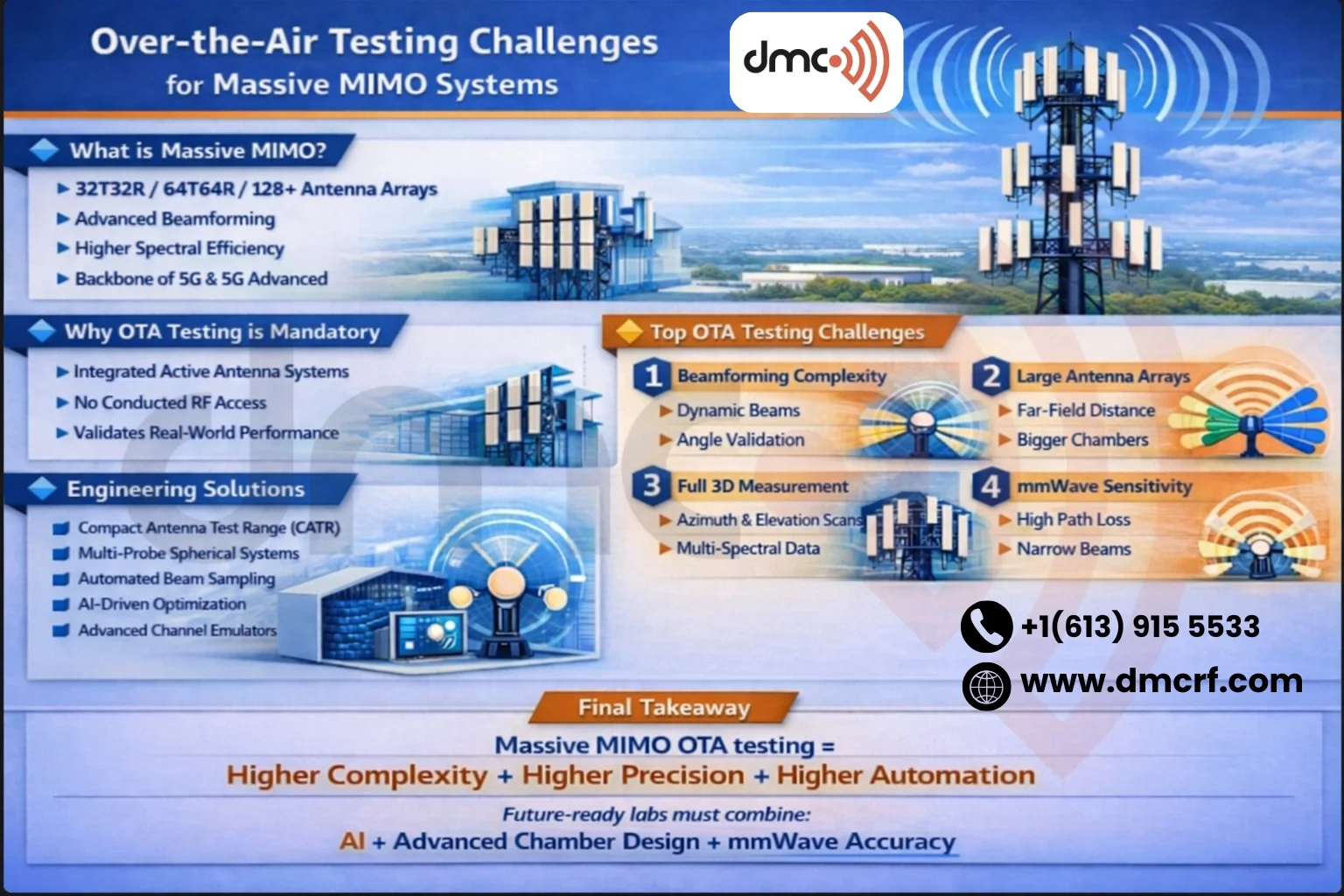

Major OTA Testing Challenges for Massive MIMO Systems
1. Beamforming Validation Complexity
Massive MIMO uses dynamic beamforming to direct energy toward users. Unlike fixed antenna patterns, beam directions constantly change.
Challenges:
- Measuring hundreds of beam states
- Capturing real-time adaptive behavior
- Validating beam switching speed
- Ensuring beam accuracy across angles
Testing every beam configuration can significantly increase measurement time.
2. Large Physical Size of Antenna Arrays
Massive MIMO base stations often include:
- 32T32R systems
- 64T64R systems
- 128+ antenna elements
These large arrays require:
- Bigger anechoic chambers
- Larger quiet zones
- Greater far-field distance
Why This Matters:
The far-field distance increases with array size. If the chamber is too small, measurement accuracy suffers.
3. 3D Radiation Pattern Measurement
Traditional antennas had simpler radiation characteristics. Massive MIMO systems require full 3D spherical scanning.
This means:
- Measuring elevation and azimuth angles
- Capturing polarization characteristics
- Testing multiple beam states
3D measurements dramatically increase data volume and testing time.
4. mmWave Frequency Challenges
At mmWave frequencies (24 GHz, 28 GHz, 39 GHz):
- Signal attenuation is high
- Beam widths are extremely narrow
- Path loss is significant
- Reflections affect accuracy
Even minor chamber imperfections can distort results.
Precise absorber materials and positioning become critical.
5. Calibration and Phase Synchronization
Massive MIMO performance depends on precise:
- Amplitude matching
- Phase alignment
- Element synchronization
Any phase drift or mismatch affects beamforming accuracy.
OTA systems must ensure extremely high calibration precision across all antenna elements.
6. Measurement Time and Cost
Testing Massive MIMO systems can be time-intensive due to:
- Multiple beam states
- Full 3D scans
- Multi-band operation
- Multi-user scenarios
Testing time directly affects:
- Product launch timelines
- Manufacturing costs
- Certification schedules
Reducing measurement time while maintaining accuracy is a constant challenge.
7. Channel Emulation Complexity
To simulate real-world environments, OTA setups often integrate channel emulators.
Challenges include:
- Multi-path modeling
- Mobility simulation
- Multi-user interference testing
- Realistic fading conditions
Recreating real-world conditions in a lab environment requires advanced system integration.
Summary Table: Key OTA Testing Challenges
| Challenge | Why It Happens | Impact | Mitigation Strategy |
|---|---|---|---|
| Beamforming complexity | Multiple dynamic beams | Increased test time | Smart beam sampling |
| Large antenna arrays | 32–128+ elements | Bigger chamber required | Compact antenna test range (CATR) |
| 3D pattern measurement | Full spherical scanning | Huge data volume | Fast positioners + automation |
| mmWave sensitivity | High frequency losses | Measurement errors | High-performance absorbers |
| Calibration precision | Phase-sensitive arrays | Beam distortion | Automated calibration routines |
| Long measurement cycles | Multi-beam testing | Higher cost | Parallel test setups |
| Real-world simulation | Complex RF environments | Incomplete validation | Advanced channel emulators |
Chamber Design Considerations for Massive MIMO
To address these challenges, OTA test chambers for Massive MIMO often include:
- Compact Antenna Test Range (CATR)
- Multi-probe spherical arrays
- Robotic positioners
- Hybrid near-field/far-field setups
- mmWave-optimized absorbers
The chamber must ensure:
- Large quiet zone
- Minimal reflections
- Accurate phase measurement
- Stable temperature control
Without proper chamber design, test results may not reflect real-world performance.
Pro Tip for Engineers
Pro Tip: Instead of testing every possible beam configuration, use statistical beam sampling combined with AI-based optimization. This significantly reduces test time while maintaining validation accuracy.
Modern OTA systems increasingly rely on automation and intelligent test sequencing to handle Massive MIMO complexity efficiently.
The Future of Massive MIMO OTA Testing
As 5G Advanced and 6G evolve, testing challenges will grow due to:
- Higher frequencies (sub-THz)
- Even larger antenna arrays
- AI-driven beamforming
- Reconfigurable intelligent surfaces (RIS)
Future OTA systems must support:
- Faster scanning
- AI-assisted calibration
- Digital twin modeling
- Real-time beam analytics
Automation and AI will play a major role in reducing complexity and accelerating certification.
Over-the-Air testing for Massive MIMO systems is significantly more complex than traditional RF testing. From beamforming validation to mmWave precision and large chamber requirements, engineers must navigate numerous technical challenges.
However, with advanced chamber designs, automation tools, intelligent sampling techniques, and precise calibration systems, reliable and efficient OTA testing is achievable.
As wireless technology advances toward 6G, mastering Massive MIMO OTA testing will remain essential for delivering high-performance, reliable networks worldwide.
Frequently Asked Questions
1. Why is OTA testing necessary for Massive MIMO?
Because antennas and RF units are integrated, conducted testing is not sufficient. OTA testing evaluates real-world radiation performance.
2. What is the biggest challenge in Massive MIMO OTA testing?
Beamforming validation across multiple dynamic beam states is one of the most complex challenges.
3. Why are mmWave systems harder to test?
mmWave frequencies are highly sensitive to reflections, path loss, and small alignment errors.
4. How does chamber size affect testing?
Larger arrays require greater far-field distance and larger quiet zones for accurate measurements.
5. How can testing time be reduced?
Using intelligent beam sampling, automation, and AI-based optimization reduces total measurement cycles.
