What are the Mandatory List of Components Required for a 3mtr EMC Chamber?
When it comes to ensuring that electronic devices meet regulatory standards for electromagnetic compatibility (EMC), a well-equipped EMC test chamber is a critical requirement. A 3-meter EMC chamber is a standard semi-anechoic chamber (SAC) used widely for compliance testing of medium to large devices and systems according to CISPR and FCC standards.
Whether you’re planning to build a new facility, upgrade an existing one, or simply want to understand what’s involved, it’s crucial to know the mandatory components that make a 3mtr EMC chamber fully functional and compliant with international norms.
In this blog, we’ll break down the essential elements every 3mtr EMC chamber must have, why they are important, and how they contribute to accurate EMC testing.

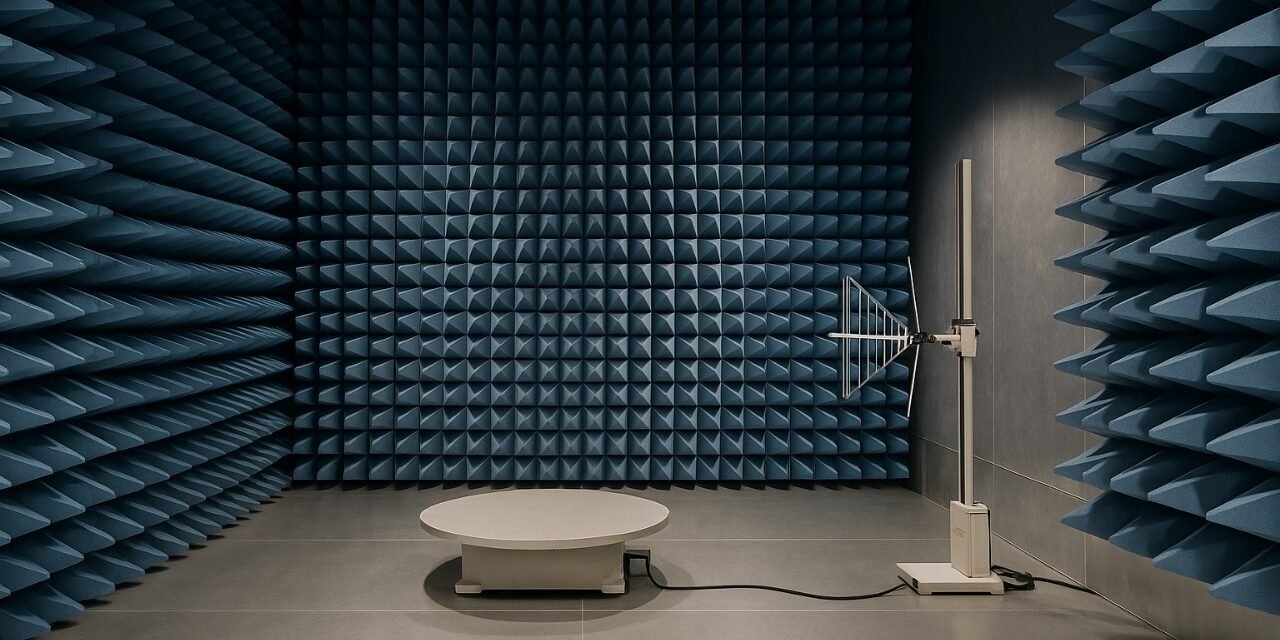

Semi-Anechoic Chamber (SAC) Structure
At the heart of the setup is the semi-anechoic chamber itself. This is a shielded room designed to block external electromagnetic signals and to prevent internal signals from leaking out.
The chamber’s walls, ceiling, and floor are lined with RF shielding panels and absorbers. The floor is usually reflective (conductive ground plane) to simulate free-space conditions per standard test requirements.
Key features:
- RF-shielded enclosure
- RF doors with high attenuation
- Electrical filters for power lines
- Ventilation waveguides
RF Absorbers
The chamber is lined with RF absorbers on the walls and ceiling. These absorbers prevent unwanted reflections that could interfere with the measurement of radiated emissions and immunity.
For a 3m chamber, hybrid absorbers (pyramidal foam absorbers with ferrite tiles) are commonly used to provide broadband absorption over the required frequency range, typically 30 MHz to 18 GHz.
Key points:
- Meets CISPR 16-1-4 site validation
- Improves measurement accuracy
- Long-term durability
Turntable
A motorized turntable is mandatory for rotating the Equipment Under Test (EUT). The EUT must be rotated during testing to capture emissions from all sides.
Turntables for 3m EMC chambers must be:
- Non-reflective (made from materials that don’t affect RF results)
- Capable of supporting the maximum EUT weight
- Smooth in operation with precise control
Antenna Mast
The antenna mast holds the measurement antennas and allows them to be raised or lowered over a specified height range (commonly 1 to 4 meters). This height variation is critical to detect peak emissions.
A motorized, non-conductive mast with remote control is the norm.
Reference Antennas
Different antennas are needed for different frequency bands:
- Biconical antennas (30 MHz – 300 MHz)
- Log-periodic antennas (200 MHz – 1 GHz)
- Horn antennas (1 GHz and above)
A calibrated set of antennas ensures accurate measurement of the EUT’s emissions.

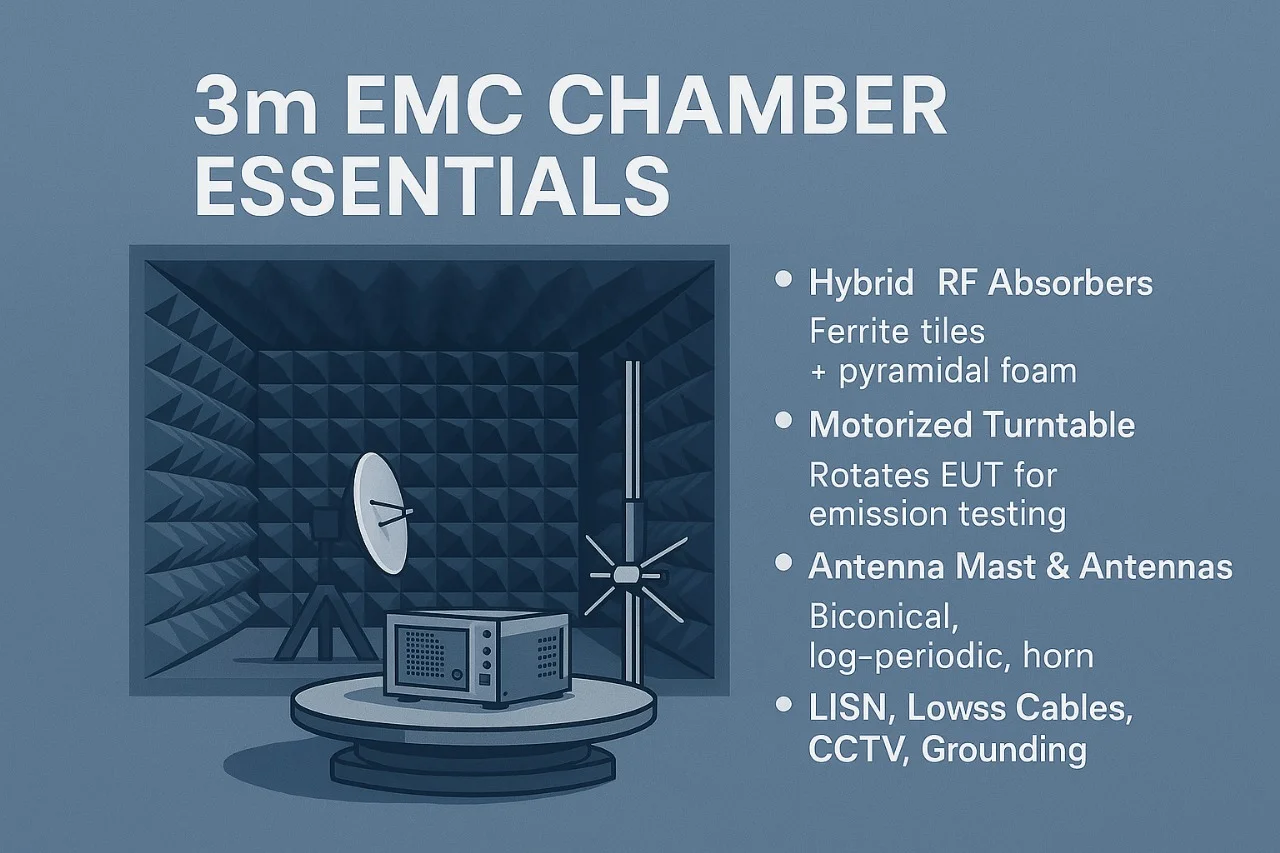

Mandatory Components for a 3mtr EMC Test Chamber
EMI Test Receiver or Spectrum Analyzer
An EMI test receiver or high-quality spectrum analyzer is essential for measuring radiated emissions. It must comply with CISPR 16-1-1 requirements.
The receiver must cover the required frequency range with suitable bandwidths and detectors (peak, quasi-peak, and average).
Low-Loss Cables and Connectors
Measurement accuracy depends heavily on high-quality RF cables and connectors. These should be low-loss, phase-stable, and properly shielded to avoid measurement errors.
All cables should be calibrated and maintained in good condition.
Line Impedance Stabilization Network (LISN)
For conducted emissions testing, a Line Impedance Stabilization Network (LISN) is required. It isolates the EUT from external power noise and provides a measurement port for the receiver.
Test Software and Automation System
Modern EMC chambers rely on dedicated test automation software to control the turntable, antenna mast, and measurement equipment. This ensures repeatable, efficient, and standards-compliant testing.
CCTV Monitoring System
Since the EUT must operate in the chamber while the operator remains outside, a camera system with high resolution is vital for monitoring the EUT safely.
Proper Grounding and Bonding
Grounding systems are mandatory to prevent unwanted interference. All equipment, turntables, and the chamber itself must be properly bonded to a single point ground.
Support Infrastructure
Finally, every functional 3m EMC chamber must have:
- Air conditioning: To control the temperature for heat-generating EUTs
- Lighting: RF-safe lighting that doesn’t introduce interference
- Safety equipment: Fire suppression, emergency stop, interlocks
Building or operating a 3-meter EMC chamber demands careful attention to each component, from absorbers to antennas, turntables, and test receivers. Each element plays a vital role in maintaining measurement integrity and ensuring compliance with international EMC standards.
A well-equipped 3mtr EMC chamber not only supports accurate testing but also boosts the credibility of your compliance reports with customers, certification bodies, and regulators.
If you’re planning to set up a chamber or upgrade an existing one, make sure you consult with expert suppliers and integrators to select the right configuration for your product testing needs.
