Maintaining Measurement Integrity: A Guide to EMC Chamber Validation and Normalized Site Attenuation (NSA)
Future Trends in Chamber Validation
Electromagnetic Compatibility (EMC) testing is at the core of product compliance, ensuring that electronic devices can operate without causing or suffering from electromagnetic interference.
At the heart of this testing process is the EMC chamber, which replicates controlled environments for accurate measurements. Validating its performance is critical to maintaining measurement integrity.
One of the most important validation methods is Normalized Site Attenuation (NSA), which ensures accuracy and compliance with standards such as CISPR 16 and ANSI C63.4.
Why EMC Chamber Validation Matters
- Measurement errors can cause failed product compliance tests.
- Inconsistent results may arise across different facilities.
- Regulatory rejection can occur if chambers are not validated.
Validation ensures:
- Confidence in results
- Regulatory compliance (CISPR, FCC, ISO/IEC 17025)
- Operational efficiency (avoiding costly retests)
What is Normalized Site Attenuation (NSA)?
NSA validates semi-anechoic and open-area test sites (OATS) by evaluating how well the site simulates free-space conditions.
It measures the difference between transmitted and received signals and compares them with theoretical free-space values. If results are within ±4 dB, the chamber is considered compliant.

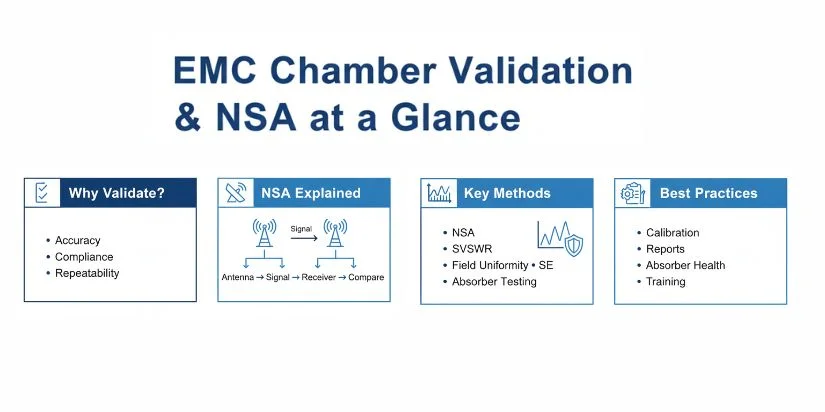

dmcrf blog img (7)
Standards Governing NSA Testing
- CISPR 16-1-4 – Methods for measuring site attenuation
- ANSI C63.4 – Procedures for radiated emissions
- ISO/IEC 17025 – General requirements for testing competence
How NSA Testing is Performed
Equipment Required:
- Calibrated transmit and receive antennas
- Signal generator
- Spectrum analyzer or receiver
- Chamber turntable
- Test software for automation
Step-by-Step Process:
- Setup antennas at defined positions (3m or 10m apart).
- Perform frequency sweep (30 MHz – 1 GHz).
- Normalize data with antenna factors and cable losses.
- Compare with theoretical free-space values.
- Validate results (within ±4 dB).
Common Issues in NSA Validation
| Issue | Impact | Solution |
|---|---|---|
| Chamber reflections | Measurement deviations | Improve absorber placement |
| Antenna misalignment | Incorrect readings | Ensure precise alignment |
| Cable losses not accounted | Skewed attenuation values | Apply proper correction factors |
| Equipment drift | Inaccurate signals | Regular calibration |
| Environmental interference | External noise in OATS | Use shielded chambers or quiet sites |
Benefits of NSA Validation
- Accuracy and reliability of results
- Regulatory confidence
- Consistency across labs
- Reduced testing costs
- Improved chamber lifespan
Best Practices for Maintaining Measurement Integrity
- Validate chambers annually or after modifications
- Maintain calibration of antennas, cables, and analyzers
- Inspect absorbers regularly
- Keep detailed validation logs
- Use trained and competent personnel
The Role of Automation in NSA Testing
- Faster data collection and processing
- Reduced human error
- Automatic application of corrections
- Improved reporting and traceability
- Integration with automated test systems
Future Trends in Chamber Validation
- AI-assisted validation
- Advanced absorber materials
- Remote monitoring
- Extended frequency ranges (up to 6 GHz+)
Maintaining measurement integrity in EMC testing is non-negotiable, and chamber validation through NSA is the cornerstone of reliable compliance testing.
