Inside a Shielded Room: Semiconductor Test Precision

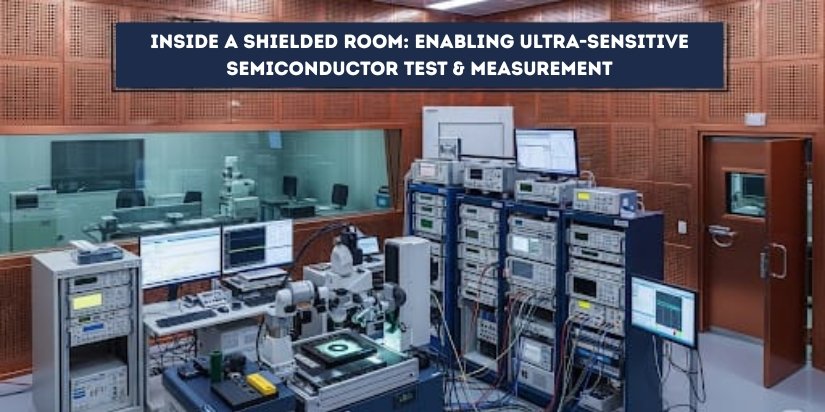

Inside a Shielded Room: Enabling Ultra-Sensitive Semiconductor Test & Measurement

In the rapidly evolving world of semiconductors, precision is non-negotiable. The pursuit of ever-smaller, faster, and more efficient integrated circuits demands not only innovation in design and fabrication but also in the environments where these components are tested. One of the most critical yet often overlooked factors in semiconductor development is the Shielded room—a meticulously controlled environment essential for ultra-sensitive test and measurement applications.

Let’s step inside a shielded room and uncover how it empowers engineers and researchers to achieve accurate, repeatable, and interference-free semiconductor testing.



🔍 Why Semiconductor Testing Requires Shielded Environments

Semiconductor components, especially at nanoscale levels, are highly sensitive to external disturbances. These can include:

• Electromagnetic interference(EMI) from nearby electronic devices
• Radio frequency interference (RFI) from communication networks
• Acoustic noise that can affect vibration-sensitive measurements
• Electrical transients from switching power sources

Even the smallest amount of environmental noise can distort test results, leading to:

• Faulty performance assessments
• Increased design iterations
• Delays in time-to-market
• Compromised reliability and yield

A shielded test room, often equipped with RF and acoustic isolation, provides a clean, controlled space for low-noise measurements that are essential during wafer-level testing, device characterization, and quality control.



🛡️ What Is a Shielded Room?

A shielded room is a specialized enclosure built to block external electromagnetic fields. It is typically constructed using:

• Conductive materials like copper or aluminum sheets for RF shielding
• Ferromagnetic materials to reduce low-frequency magnetic fields
• Anechoic foam or absorber tiles to eliminate echo and reflection
• Seamless construction to avoid gaps and potential leakage

Such rooms can also be further enhanced with:

• Faraday cages
• Active EMI filters
• Grounded test benches
• Isolated power supplies

These combined technologies ensure an electromagnetically clean environment, where semiconductor devices can be tested without any spurious signals interfering.



Applications of Shielded Rooms in Semiconductor Testing

1. Wafer-Level Test & Measurement
High-precision wafer probing tools require signal fidelity at nanovolt levels. Shielded rooms prevent EMI from distorting test signals during wafer characterization.

2. RF and Microwave Testing
Semiconductor devices for wireless communication (5G, Wi-Fi, IoT) are evaluated for frequency response, gain, and harmonic distortion. These tests must be done in RF-quiet environments.

3. Device Noise Characterization
Measuring flicker noise, thermal noise, or shot noise in transistors and amplifiers demands ultra-low-noise floors. Even ambient RFI can raise the effective noise level.

4. EMC Compliance Testing
Devices are checked to ensure they do not emit or are not susceptible to EMI beyond regulated limits. This is a critical pre-certification phase for mass production.

5. Quantum and Cryogenic Semiconductor Experiments
Quantum bits (qubits) and cryogenic components are especially vulnerable to minute fluctuations. Shielded environments with magnetic isolation are indispensable.



How Shielded Rooms Are Designed for Semiconductor Labs

Designing a shielded test room is a multi-disciplinary task involving electrical, mechanical, and RF engineering principles. Key considerations include:

1. Room Construction & Materials

• Multi-layer shielding with inner and outer metal skins
• RF gasketed doors with no mechanical gaps
• Seamless junctions between panels

2. Ventilation & Power Filtering

• RF-filtered air vents to maintain cooling without compromising shielding
• Power line filters to suppress conducted EMI from the electrical grid

3. Cable Feedthroughs & Access Ports

• Waveguide-beyond-cutoff ports for data/power cables
• Fiber optic cables preferred for signal transmission to avoid ground loops

4. Lighting & Equipment Control

• Shielded or optical lighting systems
• Remote monitoring tools to reduce operator presence during sensitive tests



Benefits of Shielded Rooms in Semiconductor Test Labs

Benefit	Impact on Testing
EMI/RFI Reduction	Higher signal integrity
Stable Environmental Control	Improved measurement repeatability
Low Acoustic and Vibration Noise	Critical for MEMS and analog components
Compliance Readiness	Easier to pass regulatory certifications
Time & Cost Efficiency	Fewer test reruns and faster development



🔬 Real-World Example: RFIC Testing in a Shielded Chamber

Imagine testing a high-performance RFIC (Radio Frequency Integrated Circuit) intended for satellite communication. This device must operate reliably across GHz frequencies with minimal noise figures.

Without a shielded environment, nearby mobile phones, Wi-Fi routers, or even industrial machinery could introduce unpredictable EMI into the test setup.

Inside a shielded room, however, the RFIC can be evaluated under optimal, interference-free conditions. Engineers can measure insertion loss, return loss, gain compression, and intermodulation distortion with confidence—leading to faster design validation and production scaling.



The Future: AI & Automation Inside Shielded Rooms

As semiconductor testing becomes more complex, shielded rooms are evolving too. Modern setups include:

• AI-driven test automation for predictive diagnostics
• Robotic probers to reduce human error
• Environmental sensors for real-time monitoring of EMI, temperature, and vibration
• Cloud-connected systems for remote control and data analytics

These upgrades not only enhance testing accuracy but also streamline lab workflows—making shielded rooms smarter and more adaptive to next-gen semiconductor demands.



Shielded rooms are not just physical enclosures—they’re enablers of innovation in the semiconductor space. By providing ultra-quiet, interference-free environments, they allow engineers and researchers to push the limits of chip performance and reliability.

Whether it’s validating a new analogy IC, testing a 5G RF front-end, or characterizing quantum circuits, the role of shielded rooms in ensuring precision, consistency, and compliance cannot be overstated.

As technology progresses and device sensitivity increases, these environments will become even more vital in semiconductor test & measurement.
