A Diagnostic Imaging Equipment EMC Compliance Checklist helps manufacturers verify that medical imaging systems can operate safely and reliably in their intended electromagnetic environment. Equipment such as X-ray systems, CT scanners, ultrasound systems, MRI equipment, digital radiography systems, and associated electronic accessories can contain sensitive electronics, high-speed digital circuits, power supplies, displays, communication interfaces, and wireless functions.
Electromagnetic compatibility (EMC) is a key requirement in medical imaging EMC testing, ensuring that equipment does not emit excessive electromagnetic energy and remains functional when exposed to external disturbances. The FDA describes EMC in medical devices as the ability to operate safely within the electromagnetic environment without causing or suffering interference.
For medical electrical equipment, IEC 60601-1-2 testing is a core standard used in EMC compliance medical devices, covering emissions, immunity, and essential performance. However, the exact compliance approach depends on the device type, intended use environment, and applicable regulatory requirements.
Why EMC Compliance Matters for Diagnostic Imaging Equipment
Diagnostic imaging systems operate in complex hospital environments where multiple electronic systems coexist. This makes medical equipment EMC testing essential to ensure safe and reliable performance.
Hospitals typically include wireless networks, surgical devices, monitoring systems, and communication equipment, all of which can introduce electromagnetic disturbances.
A structured EMC program helps manufacturers:
- Identify risks early through diagnostic imaging EMC compliance planning
- Validate emissions using radiated emissions testing and conducted emissions testing
- Evaluate immunity through RF immunity testing and ESD immunity testing
- Ensure essential performance is maintained
- Reduce failures during formal compliance testing
- Support regulatory submissions with strong technical evidence
- Improve reliability in real-world hospital environments
The FDA EMC guidance emphasizes evaluating the electromagnetic environment and ensuring compatibility with surrounding systems.

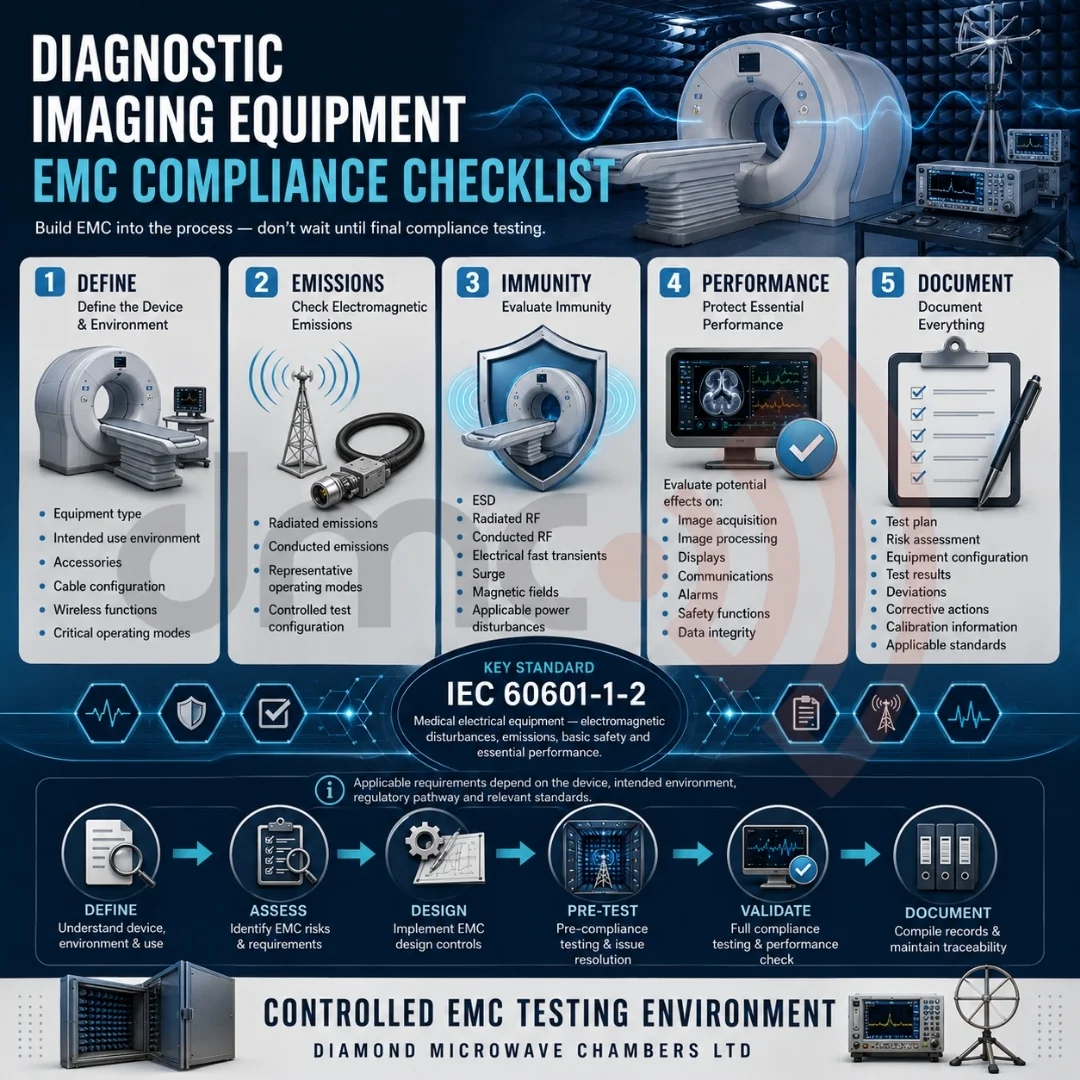

Diagnostic Imaging Equipment EMC Compliance Checklist
The following checklist supports structured medical imaging EMC testing and compliance planning.
| EMC Area | What to Check | Typical Consideration |
|---|---|---|
| Device classification | Identify equipment type and configuration | X-ray, CT, ultrasound, MRI, etc. |
| Intended environment | Define operating environment | Clinical, hospital, or home healthcare |
| Emissions | Evaluate electromagnetic emissions | Radiated emissions testing, conducted emissions testing |
| ESD immunity | Check electrostatic discharge resistance | ESD immunity testing (contact/air discharge) |
| Radiated RF immunity | Evaluate RF field exposure response | RF immunity testing across defined frequency ranges |
| Conducted RF immunity | Assess cable-borne disturbances | Power and signal line immunity |
| Electrical fast transients | Evaluate transient disturbances | Power and signal ports |
| Surge immunity | Assess surge tolerance | AC mains and external interfaces |
| Power-frequency magnetic fields | Evaluate magnetic field immunity | As defined in IEC 60601-1-2 testing |
| Voltage disturbances | Assess dips and interruptions | Power stability conditions |
| Performance monitoring | Define acceptance criteria | Essential performance functions |
| Documentation | Record all EMC evidence | Test reports, risk analysis, and compliance records |
This checklist supports diagnostic imaging EMC compliance, but final test requirements must follow applicable standards and risk management processes.
1. Define the Intended Use Environment
A key step in EMC compliance medical devices is defining the electromagnetic environment.
Consider:
- Hospital imaging rooms vs home healthcare environments
- Nearby electronic systems and wireless devices
- Power supply quality and grounding conditions
- Use of portable RF transmitters
- Cable routing and system configuration
- Patient proximity and clinical usage conditions
Understanding the environment is essential for accurate medical imaging EMC testing planning.
2. Identify Emissions Testing Requirements
Emissions testing ensures that diagnostic imaging systems do not interfere with other medical devices.
Typical evaluations include:
- Radiated emissions testing for airborne electromagnetic energy
- Conducted emissions testing through power and signal lines
- System-level emissions under worst-case operating conditions
Proper configuration is critical to ensure accurate medical equipment EMC testing results.
3. Evaluate Immunity Performance
Immunity testing ensures the system continues operating correctly under electromagnetic stress.
Key tests include:
- ESD immunity testing for electrostatic discharge events
- RF immunity testing for radiated electromagnetic fields
- Conducted RF disturbances
- Electrical fast transients
- Surge immunity
- Power-frequency magnetic fields
- Voltage dips and interruptions
IEC 60601-1-2 testing defines baseline requirements for these evaluations in medical systems.
4. Define Basic Safety and Essential Performance
EMC testing must ensure that essential functions remain stable.
For diagnostic imaging systems, this includes:
- Image acquisition and processing
- Display accuracy
- Communication systems
- Alarm functions
- Data integrity
- Safety-related controls
These criteria are central to diagnostic imaging EMC compliance validation.
5. Check RF and Wireless Functions
Modern imaging systems often include wireless technologies such as Wi-Fi, Bluetooth, or RFID.
These introduce additional EMC considerations in diagnostic imaging EMC testing, including:
- RF coexistence risks
- Wireless interference susceptibility
- Antenna placement effects
- Communication reliability under RF stress
FDA guidance highlights the importance of evaluating wireless coexistence in EMC compliance medical devices.
6. Verify the Test Configuration
Accurate medical equipment EMC testing depends on controlled configuration.
Document:
- Hardware and firmware versions
- Cable types and routing
- Operating modes
- Peripheral devices
- Power conditions
- Worst-case configurations
This ensures repeatability in radiated emissions testing and RF immunity testing.
7. Select a Suitable EMC Test Facility
A controlled environment is essential for reliable medical imaging EMC testing.
EMC chambers are commonly used to support:
- Radiated emissions testing
- Radiated RF immunity testing
- Controlled electromagnetic environments
Diamond Microwave Chambers Ltd provides EMC chamber solutions that support structured diagnostic imaging EMC compliance testing programs.
8. Maintain Complete EMC Documentation
Proper documentation supports regulatory approval for EMC compliance medical devices.
Include:
- EMC test plans
- Risk assessments
- Test configurations
- Results from ESD immunity testing and RF testing
- Deviations and corrective actions
- Calibration records
- Standards compliance evidence
Pro Tip
Do not wait for final IEC 60601-1-2 testing to identify EMC issues.
Early medical imaging EMC testing helps detect:
- Emission peaks
- RF susceptibility issues
- Grounding problems
- Cable coupling effects
A Practical EMC Workflow
- Define system and environment
- Assess EMC risks
- Design mitigation strategies
- Perform pre-compliance testing
- Validate through formal testing
- Document results
This supports efficient diagnostic imaging EMC compliance.
What Manufacturers Should Review Before EMC Testing
- EMC standards identified
- Environment defined
- Essential performance established
- EMC risk assessment completed
- Hardware configuration finalized
- Firmware versions recorded
- Accessories documented
- Cable setup defined
- Wireless functions identified
- Test plan approved
- Acceptance criteria defined
Conclusion
A Diagnostic Imaging Equipment EMC Compliance Checklist ensures structured preparation for medical imaging EMC testing, including emissions, immunity, and system performance validation.
By integrating radiated emissions testing, conducted emissions testing, RF immunity testing, and ESD immunity testing into early design stages, manufacturers can significantly improve compliance success.
IEC 60601-1-2 testing remains a key standard for EMC compliance medical devices, but successful compliance depends on early planning, proper risk assessment, and controlled testing environments.
Diamond Microwave Chambers Ltd supports manufacturers requiring controlled EMC environments for advanced medical and electronic system testing.
Frequently Asked Questions
EMC compliance ensures that diagnostic imaging equipment can operate as intended in its electromagnetic environment while limiting electromagnetic emissions that could interfere with other equipment.
Yes, IEC 60601-1-2 provides general EMC requirements for medical electrical equipment and systems. The exact applicable requirements depend on the device, intended environment, and relevant particular standards.
Depending on the equipment and applicable requirements, testing may include radiated and conducted emissions, ESD immunity, radiated RF immunity, conducted RF immunity, electrical fast transients, surge, magnetic-field immunity, and voltage disturbances.
An EMC chamber provides a controlled electromagnetic environment that helps minimize external interference and supports repeatable radiated emissions and immunity measurements.
EMC considerations should begin during the design and risk-assessment stages. Pre-compliance EMC testing can identify emission and immunity issues early, helping reduce redesigns and compliance delays.
