EMC chambersEMC TestingBeyond Compliance EMC Chambers for Debugging 1

Electromagnetic Compatibility (EMC) is no longer an afterthought in product development—it is a critical requirement for market success. Whether you are designing consumer electronics, automotive components, or medical devices, your products must comply with stringent international EMC regulations before entering the market. While most engineers view EMC chambers as facilities for final compliance testing, their true potential goes far beyond just certification.One of the most effective ways to leverage EMC chambers is for pre-scan troubleshooting and debugging. By incorporating EMC chambers early in the product development cycle, companies can avoid costly failures at accredited labs, reduce time-to-market, and gain deeper insights into product performance.In this blog, we’ll explore how EMC chambers are used beyond compliance, the benefits of pre-scan testing, and practical debugging strategies that save both time and money.

Why EMC Chambers Are Important

EMC chambers—such as Anechoic Chambers, semi-anechoic, or Reverberation Chambers—are specially designed environments for measuring electromagnetic emissions and immunity. They provide a controlled space with minimal external interference, allowing engineers to analyze how a product interacts with its electromagnetic environment.

Traditionally, EMC chambers are associated with final compliance testing, which is mandatory for certification. However, waiting until this late stage to test a product is risky. If the device fails, engineers face delays, redesign costs, and repeated lab bookings.

This is why pre-scan testing and debugging inside EMC chambers has emerged as a best practice.

What Is Pre-Scan Troubleshooting?

Pre-scan troubleshooting refers to conducting informal EMC tests before sending the product to an accredited lab for compliance testing. The goal is not to produce an official report but to:

  • Identify potential EMC issues early.
  • Debug and mitigate electromagnetic interference (EMI).
  • Optimize product design for a higher chance of first-time compliance success.

This proactive approach turns EMC chambers into diagnostic tools rather than just compliance checkpoints.

Benefits of Using EMC Chambers for Pre-Scan Debugging

  1. Early Detection of EMC Issues – Products are most vulnerable to EMC problems during the design phase. Pre-scan tests help engineers detect emissions, coupling issues, or susceptibility problems before they become costly roadblocks.
  2. Reduced Certification Costs – Accredited labs charge high fees for compliance testing. If your product fails, you’ll need to repeat the process—multiplying costs. Pre-scan debugging reduces the risk of repeated failures.
  3. Faster Time-to-Market – Delays in certification can push back product launches. Pre-scan testing accelerates debugging, ensuring products are market-ready on schedule.
  4. Detailed Debugging Insights – Unlike compliance testing, where time is limited, pre-scans give engineers freedom to experiment. They can swap components, adjust shielding, or modify layouts while monitoring EMC behavior in real-time.
  5. Confidence in Certification – Products that pass pre-scan testing have a much higher chance of clearing compliance tests on the first attempt. This boosts confidence across the engineering and management teams.

Debugging Strategies Inside EMC Chambers

Using EMC chambers for troubleshooting requires a structured approach. Below are common strategies engineers employ during pre-scan sessions:

  1. Radiated Emission Pre-Scans
    • Measure electromagnetic noise emitted from the device.
    • Identify specific frequency ranges that exceed limits.
    • Use spectrum analyzers and near-field probes to trace emissions back to the root cause.
  2. Conducted Emission Debugging
    • Analyze unwanted signals conducted through power or data lines.
    • Apply filters, ferrite beads, or PCB layout improvements.
  3. Immunity Stress Testing
    • Expose the device to controlled RF fields to test its resilience.
    • Debug susceptibility to external interference (e.g., mobile phones, Wi-Fi signals).
  4. Near-Field Scanning
    • Pinpoint “hot spots” on the PCB that radiate excessive EMI.
    • Localize issues to components, traces, or ground loops.
  5. Shielding and Grounding Experiments
    • Test shielding materials and grounding schemes.
    • Evaluate the effectiveness of enclosures, gaskets, and connectors.

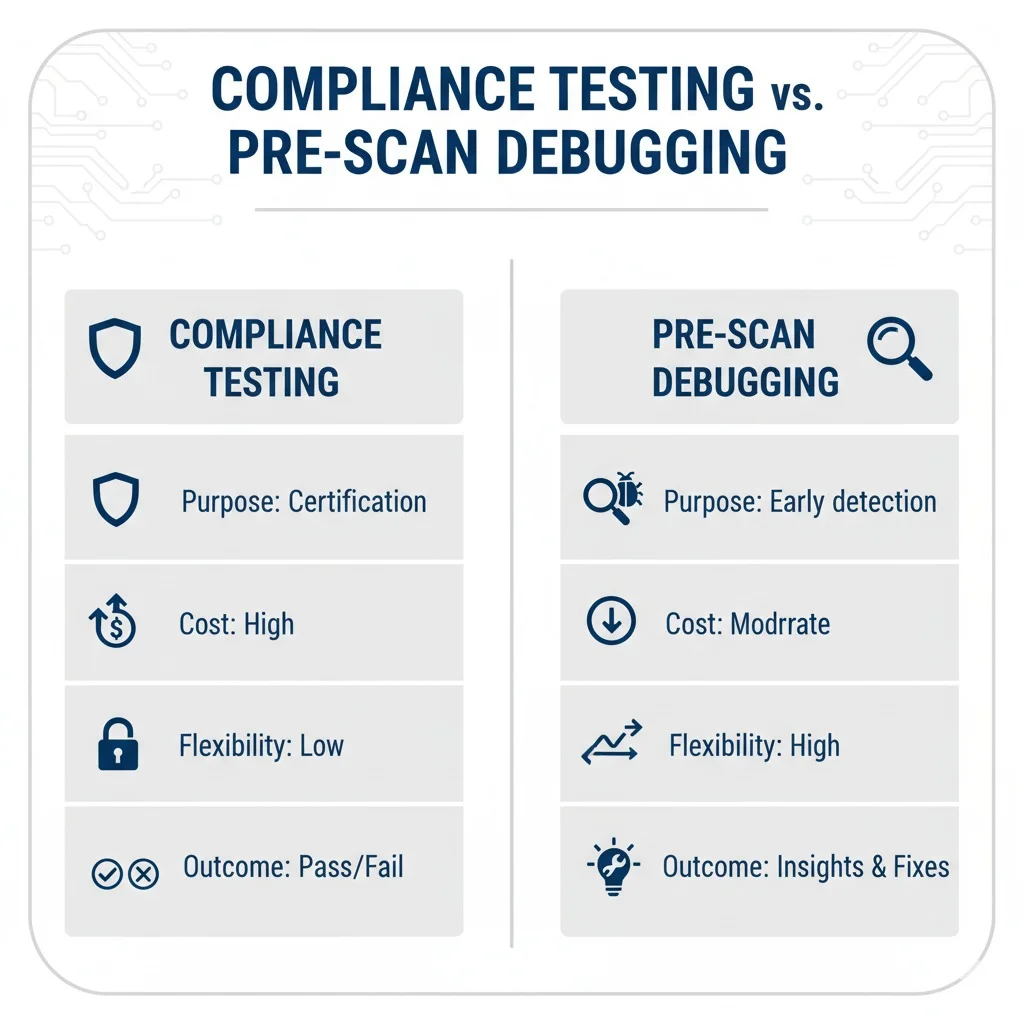

Comparison Table: Compliance Testing vs. Pre-Scan Debugging

Aspect Compliance Testing Pre-Scan Debugging
Purpose Official certification for market entry Early detection & root-cause analysis
Environment Accredited lab under strict standards In-house or rented EMC chambers
Flexibility Limited (formal procedures must be followed) High (engineers can adjust designs freely)
Cost High (per test cycle) Moderate (saves repeated costs)
Outcome Pass/fail results Actionable insights for design improvement
Timeframe End of product lifecycle Early & throughout development

Best Practices for Effective Pre-Scan Debugging

  1. Integrate EMC Testing Early – Start pre-scan sessions as soon as you have working prototypes, not just before certification.
  2. Use the Right Equipment – Invest in reliable spectrum analyzers, antennas, near-field probes, and power line impedance stabilization networks (LISNs).
  3. Collaborate Across Teams – Involve PCB designers, firmware developers, and mechanical engineers in the process. EMC is a cross-disciplinary challenge.
  4. Document Findings Thoroughly – Keep detailed records of emissions, frequencies, and fixes applied. This helps replicate solutions in future designs.
  5. Iterate Quickly – Make small changes, test, and re-measure. The flexibility of pre-scans allows for continuous improvement.Beyond Compliance EMC Chambers for Debugging

Real-World Example

Consider a company designing a new IoT device. During the first compliance attempt, the device fails due to radiated emissions at 250 MHz . The team is forced to redesign the PCB, delaying the launch by three months.

If they had used an EMC chamber for pre-scan testing, they would have detected the issue early. By experimenting with shielding and ground plane modifications, they could have entered the compliance lab with confidence—saving both time and costs.

The Business Case for Pre-Scan Debugging

From a business perspective, pre-scan testing is not just an engineering tool but a strategic investment. The cost of setting up in-house EMC chambers or renting them for development phases pays for itself by:

  • Avoiding multiple compliance test failures.
  • Reducing redesign cycles.
  • Ensuring faster product launches.

In highly competitive industries, where time-to-market defines success, pre-scan debugging can be the difference between being a market leader or playing catch-up.

Future of EMC Pre-Testing

With growing complexity in electronics—5G, IoT, EVs, and medical wearables—the importance of EMC troubleshooting will only increase. Engineers are already adopting simulation tools combined with chamber pre-scans to predict and debug EMC performance more accurately.

The future points toward a seamless integration of:

  • EMC simulations during design.
  • Rapid pre-scan testing during prototyping.
  • Efficient compliance testing as the final step.

EMC chambers are not just compliance facilities—they are debugging powerhouses. By using them for debugging and pre-scan troubleshooting, engineers gain a proactive advantage: identifying issues early, reducing costs, and accelerating product launches.

Moving beyond compliance, EMC chambers become integral to innovation, ensuring that products are not only certified but also robust, reliable, and market-ready.
