Best RF Absorber Material for High-Frequency Testing

What Is an RF Absorber Material?

An RF absorber material is a specially engineered material designed to absorb electromagnetic waves rather than reflect them. These materials reduce reflections, standing waves, and interference inside test environments such as:

• Anechoic chambers
• Semi-anechoic chambers
• Shielded rooms
• EMC testing labs
• Microwave testing setups

At high frequencies, even small reflections can introduce measurement errors. That’s why selecting the correct RF absorber for high-frequency testing is essential.

Why RF Absorbers Matter in High-Frequency Testing

As frequency increases:

• Wavelength decreases
• Reflections become more sensitive
• Signal distortion increases
• Measurement tolerances become tighter

High-frequency signals (1 GHz to 110 GHz and beyond) are especially prone to multipath interference and reflection errors.

Without proper RF absorber material:

• Antenna pattern measurements become inaccurate
• Radar cross-section (RCS) testing fails
• EMC compliance results vary
• Device certification may be rejected

In short, absorber performance directly impacts test reliability.

Types of RF Absorber Materials

There are three main categories of RF absorber materials used in high-frequency testing:

1. Pyramidal Foam Absorbers
2. Ferrite Tile Absorbers
3. Hybrid Absorbers (Ferrite + Foam)

Let’s examine each in detail.

1. Pyramidal Foam Absorbers

These are the most common microwave absorber materials used in anechoic chambers.

Material Composition:

• Polyurethane foam
• Carbon-loaded conductive coating

Best Frequency Range:

• 500 MHz to 110 GHz (depending on height)

Advantages:

• Excellent high-frequency absorption
• Lightweight
• Easy installation
• Cost-effective for microwave ranges

Limitations:

• Less effective below 500 MHz
• Fire safety considerations

Pyramidal structures increase path length, improving absorption efficiency at higher frequencies.

2. Ferrite Tile Absorbers

Ferrite absorbers are magnetic materials used for low-frequency absorption.

Material Composition:

• Sintered ferrite ceramic tiles

Best Frequency Range:

• 30 MHz to 1 GHz

Advantages:

• Thin profile
• Excellent low-frequency performance
• Durable and fire resistant

Limitations:

• Heavy
• Limited performance at very high frequencies
• Higher cost per tile

Ferrite tiles are often installed on chamber walls for EMC testing compliance.

3. Hybrid RF Absorbers

Hybrid absorbers combine ferrite tiles with pyramidal foam absorbers.

Best Frequency Range:

• 30 MHz to 40+ GHz

Advantages:

• Wideband performance
• Best overall EMC compliance solution
• Covers both low and high frequencies

Limitations:

• Higher initial investment
• More complex installation

Hybrid systems are considered the best RF absorber material choice for high-frequency testing environments that require broadband performance.

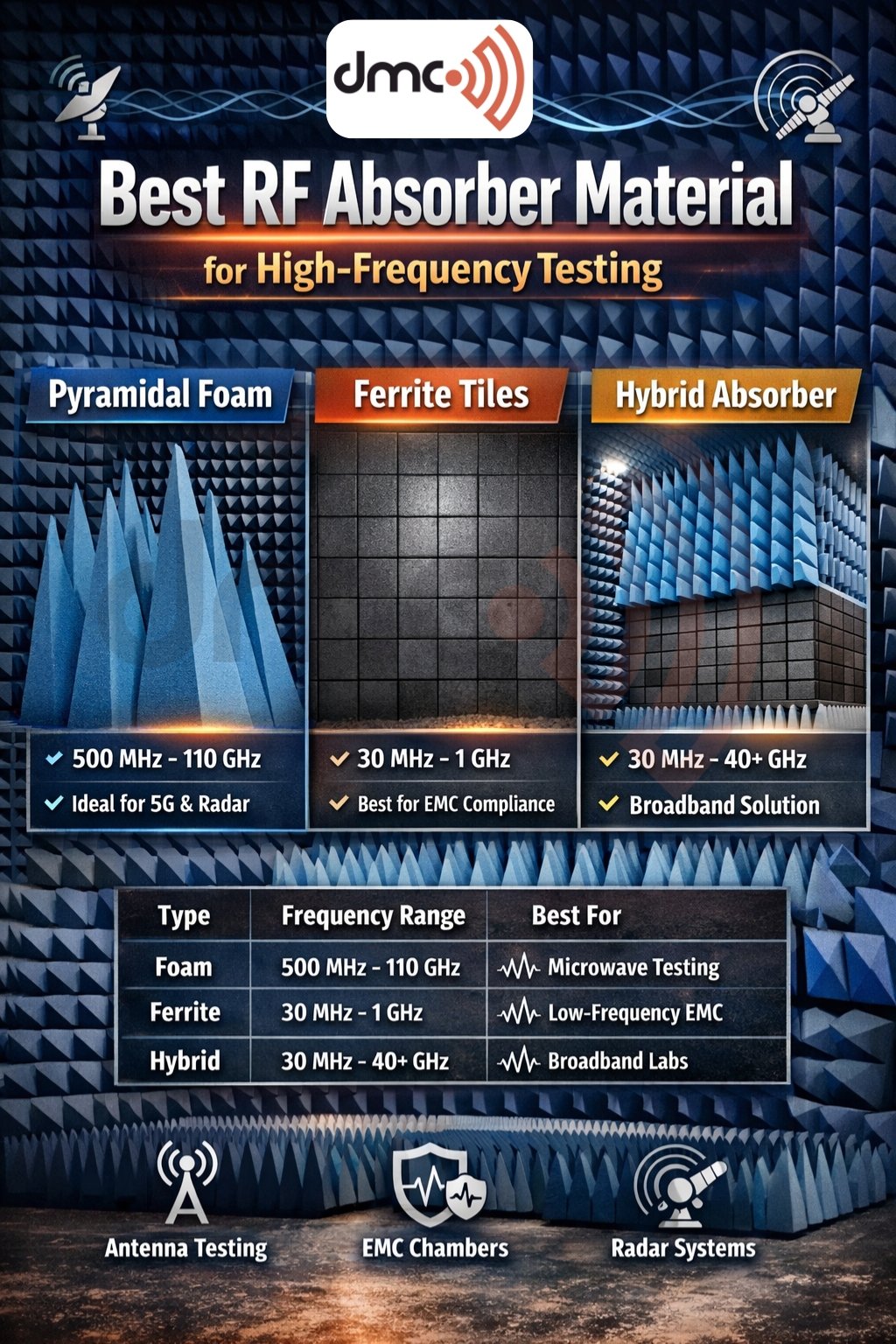

RF Absorber Material Comparison Table

What Is the Best RF Absorber Material for High-Frequency Testing?

For high-frequency testing above 1 GHz, the best RF absorber material is:

✔ High-Performance Pyramidal Foam Absorber

OR

✔ Hybrid Absorber System (for broadband labs)

If your testing environment focuses on:

• 5G mmWave
• Automotive radar (24 GHz, 77 GHz)
• Satellite communications
• Aerospace radar
• Antenna pattern testing

Then high-density pyramidal foam absorbers (18” to 36”) are typically the optimal choice.

However, for EMC labs that must meet regulatory standards like CISPR or MIL-STD, hybrid absorbers provide superior full-spectrum performance.

Key Factors to Consider When Choosing RF Absorber Material

1. Frequency Range

Always match absorber performance to your highest test frequency.

2. Reflectivity Rating

Look for reflectivity ratings such as:

• -30 dB
• -40 dB
• -50 dB

Lower dB reflectivity = better absorption.

3. Chamber Size

Larger chambers require thicker absorbers for better performance.

4. Fire Safety Standards

Ensure compliance with:

• UL 94
• NFPA 13
• ISO fire ratings

5. Environmental Conditions

Humidity and temperature variations can affect foam absorbers.

🔍Pro Tip: Go Taller for Millimeter Wave Testing

If you’re testing above 24 GHz (such as automotive radar at 77 GHz), choose pyramidal absorbers that are at least 24–36 inches tall.

Why?

Because at higher frequencies, small reflections dramatically affect antenna gain patterns and radar cross-section measurements. Taller absorbers increase wave attenuation and improve quiet-zone performance.

Cutting costs on absorber height often results in inaccurate data and expensive re-testing.

Applications of High-Frequency RF Absorbers

The best RF absorber materials are used in:

• 5G base station testing
• Automotive radar calibration
• Aerospace antenna validation
• Satellite payload testing
• Defense RCS measurement
• EMC compliance labs
• Wireless device certification

With increasing adoption of IoT, mmWave, and advanced radar systems, demand for high-performance RF absorber materials continues to grow.

Common Mistakes to Avoid

1. Choosing foam absorbers for low-frequency testing
2. Ignoring reflectivity ratings
3. Underestimating absorber height
4. Not accounting for chamber geometry
5. Focusing only on price instead of performance

Poor absorber selection can invalidate entire test campaigns.

Future Trends in RF Absorber Materials

The industry is moving toward:

• Thin broadband absorbers
• Nano-material-based RF absorption
• Eco-friendly fire-resistant foam
• Lightweight modular absorber panels
• Absorbers optimized for 5G and 6G

As frequencies continue rising into sub-THz bands, absorber material technology will evolve accordingly.

Choosing the best RF absorber material for high-frequency testing depends on your frequency range, application, and compliance requirements.

For most high-frequency applications above 1 GHz:

✔ Pyramidal foam absorbers provide excellent microwave performance.

✔ Hybrid absorbers offer the most comprehensive broadband solution.

Investing in the correct RF absorber material ensures:

• Accurate measurements
• Reduced signal reflections
• Reliable EMC compliance
• Long-term cost efficiency

When precision matters, absorber quality is not optional — it’s foundational.

Frequently Asked Questions

1. What is the best RF absorber material for 5G testing?

High-density pyramidal foam absorbers (24–36 inches) are ideal for 5G and mmWave testing above 24 GHz.

2. Are ferrite absorbers good for high-frequency testing?

Ferrite absorbers work best below 1 GHz. For higher frequencies, foam or hybrid absorbers are better.

3. What reflectivity rating should I choose?

For precision antenna testing, choose absorbers with at least -40 dB reflectivity.

4. How thick should RF absorbers be?

Thickness depends on frequency. Higher frequencies require taller pyramidal absorbers for optimal attenuation.

5. What is the difference between hybrid and foam absorbers?

Hybrid absorbers combine ferrite tiles and foam pyramids to provide wideband performance from 30 MHz to 40+ GHz.
