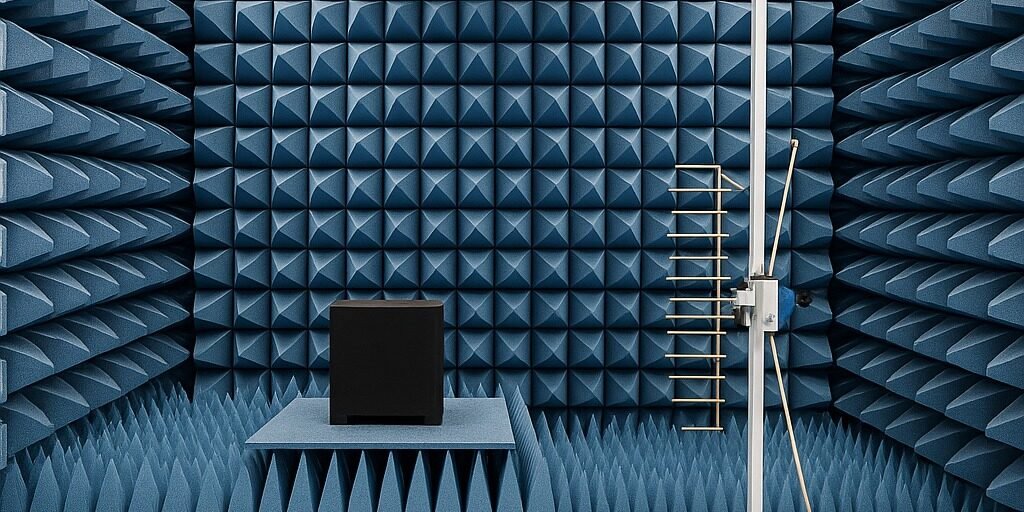

Understanding the 3-Meter EMC Anechoic Chamber: Purpose, Design, and Use Cases
Electromagnetic Compatibility (EMC) testing is a crucial part of modern product development across industries, ensuring electronic devices can operate as intended in real-world electromagnetic environments. One of the essential tools in EMC testing is the anechoic chamber—a specially designed room that prevents internal reflections and external radio frequency (RF) interference. A widely used standard in this category is the 3-meter EMC Anechoic Chamber, favored for its balanced footprint and broad testing capabilities. In this blog, Diamond Microwave Chambers Ltd explores the structure, standards, and advantages of a 3-meter EMC anechoic chamber.
Key Features of a 3-Meter EMC Chamber
A 3-meter EMC chamber is specifically designed to perform radiated emission and immunity tests at a fixed distance of 3 meters between the equipment under test (EUT) and the measurement antenna. Let’s delve into the components that define its functionality.
RF Shielding and Absorber Materials
One of the fundamental features of a 3-meter chamber is its RF shielding capability. The chamber is constructed with conductive materials, usually galvanized steel or copper, which block unwanted external RF signals from entering the testing space. This ensures accurate and repeatable test results.
To simulate a free-space environment, RF absorber materials are installed on the inner walls, ceiling, and floor of the chamber. These absorbers, typically made from carbon-loaded foam or ferrite tiles, minimize RF reflections and emulate an open-air test site. The combination of shielding and absorption provides a controlled electromagnetic environment for precise measurements.
Turntable and Antenna Mast Integration
A standard 3-meter EMC chamber is equipped with an automated turntable that rotates the EUT during testing to assess emissions and susceptibility from various angles. This turntable is usually positioned at the center of the chamber floor and can handle a range of product sizes and weights.
In conjunction with the turntable, an antenna mast is installed to hold the receiving or transmitting antennas at varying heights. The mast’s height adjustment feature allows testers to identify the angle and elevation that produce the maximum emission levels, which is vital for meeting regulatory requirements.
Applicable EMC Standards and Compliance
When evaluating the efficiency and compliance capability of a 3-meter chamber, it’s essential to understand the EMC testing standards it supports. Diamond Microwave Chambers Ltd ensures its 3-meter models are fully compatible with international testing norms.
CISPR and IEC Requirements
The International Special Committee on Radio Interference (CISPR) and the International Electrotechnical Commission (IEC) lay down essential guidelines for EMC testing. CISPR 16, in particular, defines the methods and instrumentation for radiated emissions measurement.
A 3-meter chamber is often used for pre-compliance and compliance testing in line with:
- CISPR 11 – Industrial, scientific and medical equipment
- CISPR 22 / CISPR 32 – Information technology and multimedia equipment
- IEC 61000-4-3 – Radiated immunity testing for electrical and electronic equipment
FCC and MIL-STD Compatibility
In addition to CISPR and IEC, a 3-meter chamber must also meet the needs of:
- FCC Part 15 & 18 – Emission regulations for devices marketed in the United States
- MIL-STD-461 – Military standard for controlling EMI in defense-related electronics
Whether for civilian or military-grade testing, the 3-meter chamber remains a versatile and compliant option.
Benefits of Using a 3-Meter Chamber
Choosing a 3-meter EMC chamber provides a number of practical and financial advantages, especially for medium to large enterprises looking to enhance product quality and compliance.
Space and Cost Efficiency
Compared to larger chambers like the 10-meter range, a 3-meter EMC chamber offers a compact footprint without compromising on essential testing capabilities. This makes it ideal for organizations with limited laboratory space or budget constraints. Diamond Microwave Chambers Ltd designs these chambers to maximize internal usability while minimizing external space requirements.
In addition, installation and maintenance costs are significantly lower than those of larger test facilities, making it an excellent choice for in-house testing environments.
Versatility for Pre-Compliance Testing
Before submitting a product for final certification, manufacturers often conduct pre-compliance testing to catch and resolve EMC issues early in the design cycle. The 3-meter chamber is perfectly suited for this purpose.
Its flexible setup allows engineers to simulate real-world electromagnetic conditions, experiment with shielding designs, and optimize circuit layouts. This proactive approach minimizes costly design revisions later in the development process.
Improved Product Reliability
EMC compliance is not just about meeting regulations—it’s about ensuring that devices can function reliably in diverse electromagnetic environments. Using a 3-meter EMC chamber during the design and validation stages significantly reduces the risk of field failures caused by EMI.
Moreover, industries such as automotive, aerospace, telecommunications, and medical devices demand high standards of performance. The data obtained from 3-meter chamber tests can help improve circuit robustness, component selection, and system design, contributing to a longer product lifecycle and enhanced brand reputation.
Conclusion
The 3-meter EMC Anechoic Chamber represents a pivotal tool in modern electromagnetic compatibility testing. Combining space efficiency with rigorous compliance capabilities, it serves as a powerful platform for both pre-compliance and certification-level evaluations.
At Diamond Microwave Chambers Ltd, we specialize in designing and manufacturing world-class EMC testing chambers that meet global standards. Whether you’re launching a new product or optimizing an existing one, our 3-meter chamber solutions can help you meet compliance, reduce time to market, and enhance performance.
Contact us today to learn more about how our custom-built anechoic chambers can elevate your testing capabilities.
