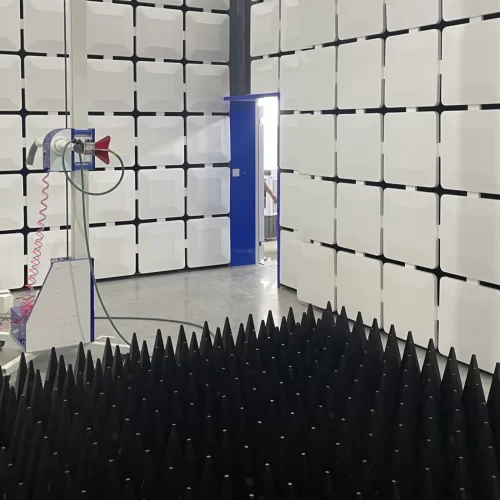

DMC-SAC-3M
Category: Semi Anechoic Chamber
DMC 3meter chambers are useful for both pre-compliance and Full-compliance emissions and compliant immunity testing with limited space availability in the host building. It provides test capability at 3 meter test distance with up to 2.0 meter quite zone and repeatable results.
DMC 3 meter compliant test chambers has flexibility to provide custom solutions for different quiet zone requirements and performance options.
Price: $295k

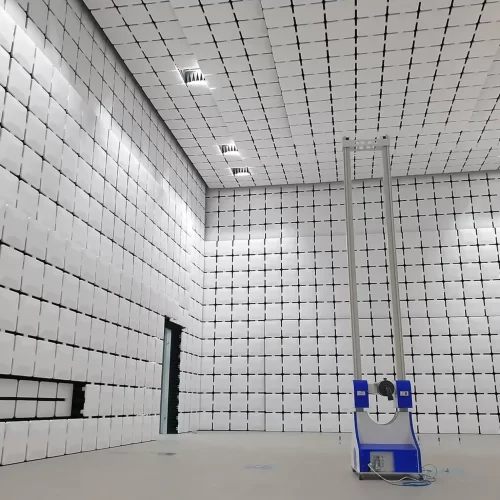

DMC-SAC-5M
Category: Semi Anechoic Chamber
DMC-SAC-5M Semi Anechoic EMC chamber are used for radiated emission and radiated immunity testing at 5 meter test distance. The chamber is designed for compliant emission and immunity testing. The self-standing steel structure with DMC-PAN series PAN-type modular shielding system per MIL-STD-285 and unique arrangement of Polypropylene based hybrid absorbers in specular areas with high performance ferrite tiles provides broadband performance up to 40 GHz.
Price: $495k

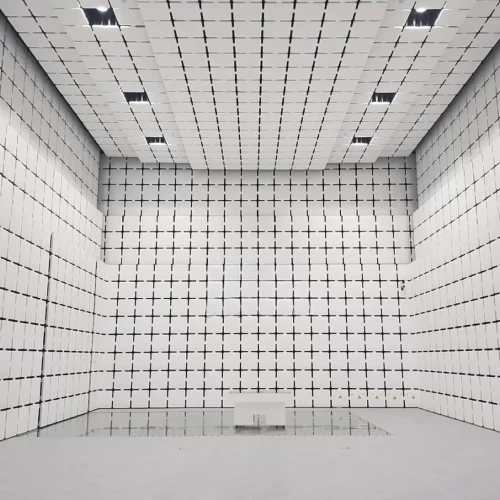

DMC-SAC-10M
Category: Semi Anechoic Chamber
DMC-SAC-10M Semi Anechoic EMC chamber are used for radiated emission and radiated immunity testing at 10 meter test distance with Quiet zone option up-to 6m. The chamber is designed for compliant emission and immunity testing. The self-standing steel structure with DMC-PAN series PAN-type modular shielding system per MIL-STD-285 and unique arrangement of Polypropylene based hybrid absorbers in specular areas with high performance ferrite tiles provides broadband performance up to 40 GHz.
Price: $695k
DMC-FAC-3M
Category: Fully Anechoic Chamber
DMC-FAC-3M is a Fully Anechoic Chamber or referred as FAC Chamber with 3 meter measurement distance. This chamber is similar to a semi-anechoic chamber, except absorbers are placed on ground plane as well to simulate a free space environment. It is made up of DMC-PAN series self-standing shielding, ferrite tiles and Polypropylene based hybrid absorbers on all walls, ceiling and floor.
Price: $350k

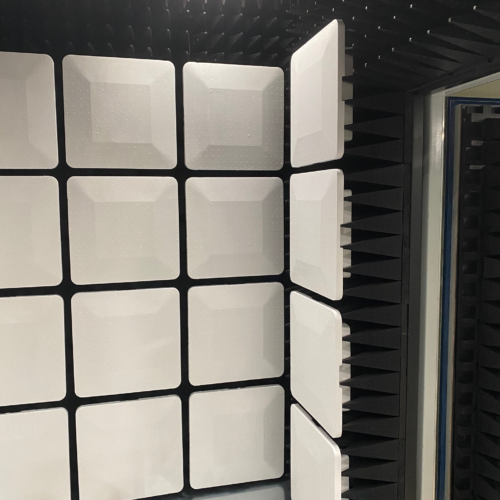

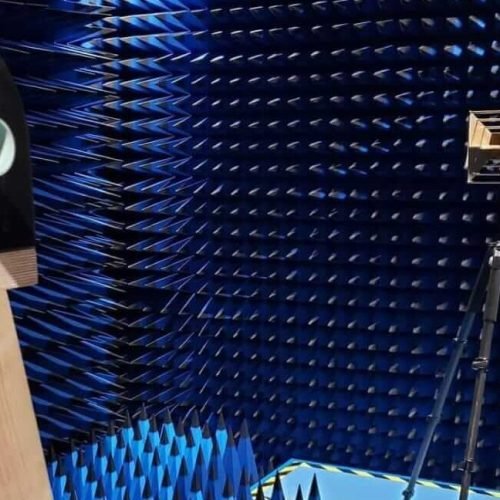

Antenna Anechoic Chamber
DMC Antenna Anechoic chambers are lined with RF Microwave Absorber Pyramidal foam cones or High performance Polypropylene Hybrid material to give better reflectivity and Galvanized sheets to maintain higher Shield room attenuation.
DMC Antenna Anechoic Chamber options include:
- PU foam absorber or Polypropylene High performance absorber
- Structural support frame to withstand Seismic Zone 5/CAT5 category or any other equivalent
Price: $45k

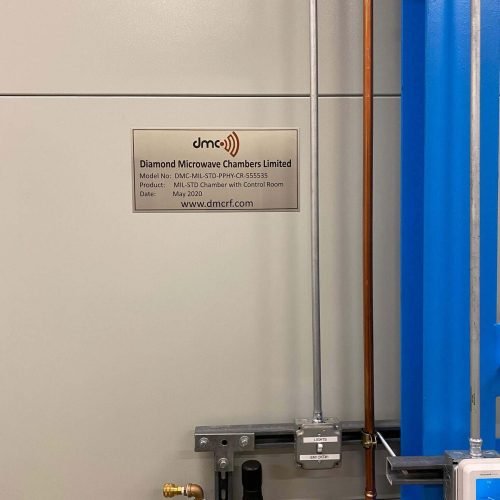

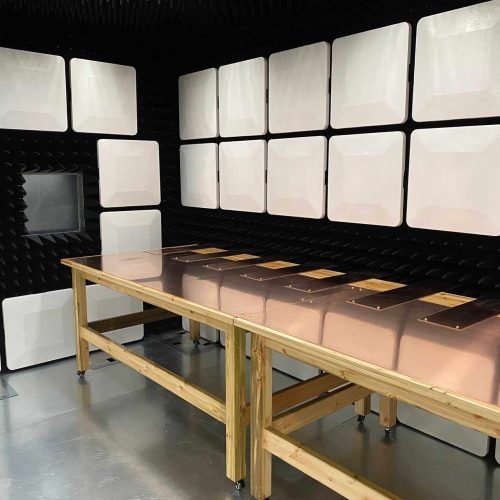

MIL-STD 461 Chamber
DMC MIL-STD 461 is a Semi-Anechoic Chamber or referred as MIL STD chamber is a RF-shielded semi-anechoic chamber designed for testing in accordance with Mil-STD 461E, Mil-STD 461F and Mil-STD-461G. It is made of DMC-PAN series self-standing shielding, ferrite tiles and Polypropylene based hybrid absorbers on all walls and ceiling with the reflective ground plane.
MIL-STD 461 E/F/G
Price: $100k

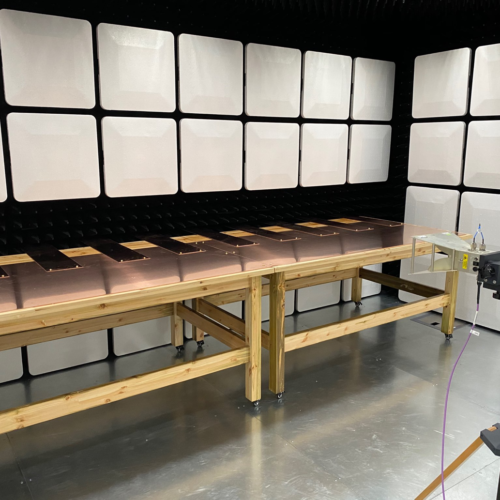

CISPR Chamber
DMC-CISPR is a Semi-Anechoic Chamber or referred as CISPR 25 chamber is a RF-shielded semi-anechoic chamber providing an ideal environment for compliant CISPR 25 testing. The chamber is specifically designed for CISPR 25 (2016) and ISO 11452-2 measurements of automotive components with maximum dimension up to 1-meter. It is made of DMC-PAN series self-standing shielding, ferrite tiles and Polypropylene based hybrid absorbers on all walls and ceiling with reflective ground plane.
Price: $100k

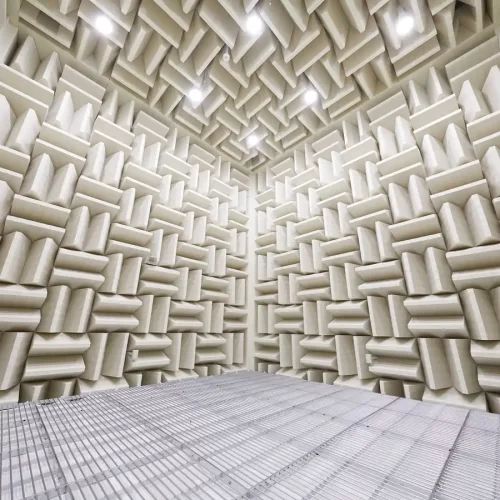

Fully Anechoic Acoustic Chamber
Category: Acoustic Chambers
The fully anechoic chamber features six surfaces madeup of Sola metal panels and sound-absorbing wedges on the walls, floor and ceiling. The basic anechoic chamber construct using concrete, plasterboard, and a special cloth-type sound-absorbing wedge. Our anechoic chamber, on the other hand, has the benefits of being simple to assemble, inexpensive, precise, and portable.
Price: $50k

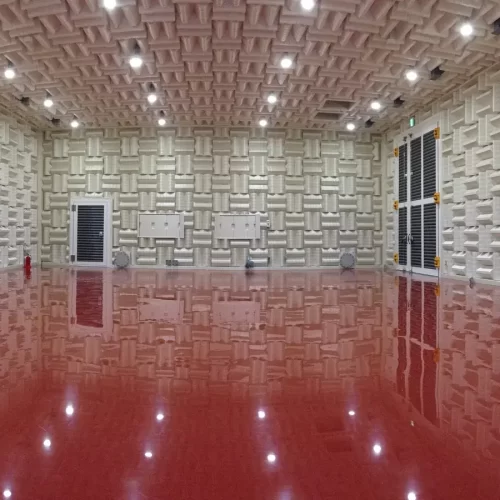

Hemi Anechoic Acoustic Chamber
Category: Acoustic Chambers
A constructed hemi-anechoic chamber serves as an environment for measuring noise, particularly for assessing the acoustic power levels of equipment and machinery. Its assembled using Sola metal panels & frames. The interior is made up of non-combustible sound-absorbing wedges. this hemi anechoic chamber allows for easy disassembly and transportation since it doesn’t involve concrete walls. We offer the flexibility to create customized structures tailored to specific measurement purposes and layouts.
Price: $35k

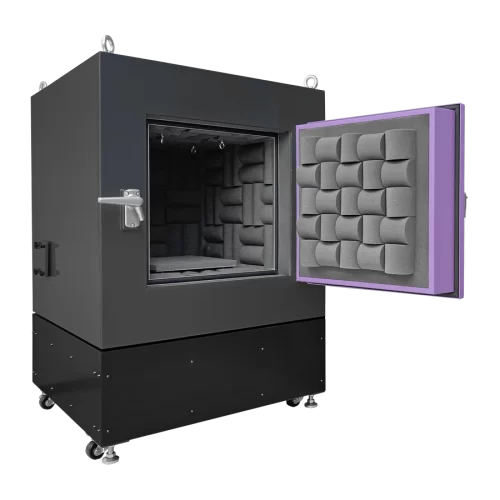

Anechoic Test Box
Category: Acoustic Chambers
Anechoic Test box is an enclosure designed to have high sound insulation and absorption. It is commonly used for measuring the noise produced by products detecting any sounds ensuring quality control and conducting research and development activities. We have utilized our technology in creating a multilayer panel.
Communication information equipment, precision equipment, electronic components, nanotechnology-related products, environment-related products
Price: $10k
RF Shielded Room
Category: RF Shielded Enclosures
We DMC manufacture RF shielded room with PAN type Galvanized 2mm sheet joined together on all sides with nuts and bolts and RF shielding gaskets sandwiched in between them. Technical specifications of our RF shielded rooms are as follows:
DMC-PAN series modular PAN-type shielding system is made up of 2mm thick Zinc coated cold rolled sheet metal panels as per ASTM A653
Price: $9,500k

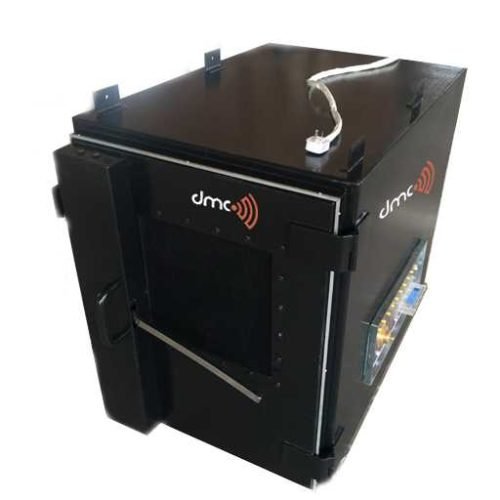

RF Shielded Enclosure – OTA Testing Sub 6GHz
Category: RF Shielded Enclosures
The DMC-OTA-S6 series RF shielded enclosures are cost-effective for over-the-air (OTA) testing at 6GHz. Our advanced shielding technology provides high isolation level make them suitable for OTA testing.
To minimize path loss and to get best results, these shield boxes can include racking options to incorporate instruments directly at the enclosure
Price: $9,999k

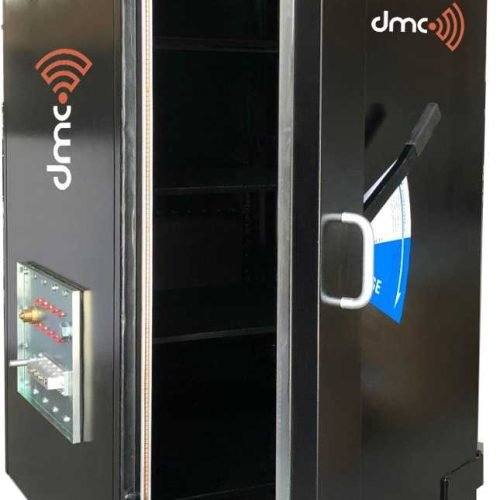

RF Shielded Enclosure – Dual OTA testing
Category: RF Shielded Enclosures
The DMC-OTA-DUAL series RF shielded enclosures are cost-effective solutions for OTA testing for mmWave applications with two internally isolated compartments. Lower section is ideal for placing test equipment such as spectrum analyser, VNA, signal source, RF switching, etc. Our advanced shielding technology provides high isolation level make them suitable for testing 5G applications such as low-frequency devices (below 1 GHz), LTE-AP, 5G-NR, and mmWave (FR1 and FR2).
Price: $9,999k

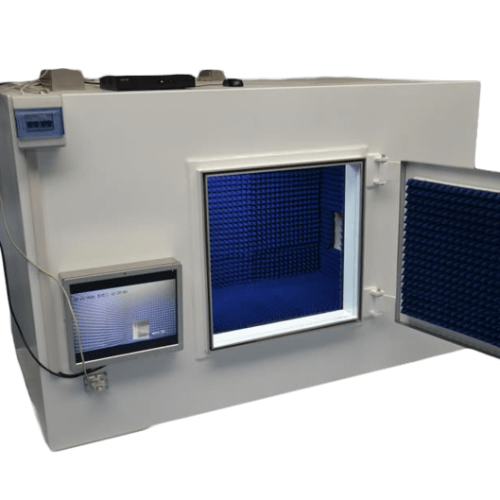

5G Millimeter wave (mmwave) RF Shielded Enclosure
Category: RF Shielded Enclosures
The DMC-5G-mmW series Millimeter wave RF shielded enclosures are advanced and compact direct field OTA test enclosure occupying minimal floor space. 100 mm thick high performance microwave absorber is fully lined on all walls, ceiling and floor. These enclosures can be used for 5G small cell, Pico cells, Femto and Microcell near field and far field measurements.
Product: DMC Millimeter Wave RF Shielded Enclosure
