The Ultimate Guide to MIL-STD-461 Compliance: Why the 3-Meter Chamber is Essential for Defense Electronics such as RE102 or RS103

Understanding MIL-STD-461

MIL-STD-461 is designed to ensure that electronic equipment:

• Does not emit excessive electromagnetic energy that could interfere with other systems.
• Can withstand external electromagnetic disturbances without performance degradation.
• Operates safely and reliably in mission-critical environments.

The standard applies to a wide range of military equipment, including:

• Communication systems
• Radar and navigation equipment
• Avionics
• Weapon systems
• Power electronics
• Ground vehicle electronics

Unlike commercial EMC standards, MIL-STD-461 is far more stringent. It focuses on real-world operational conditions where interference could lead to mission failure or safety risks.

What is RE102?

RE102 measures radiated electromagnetic emissions from equipment under test (EUT). In simple terms, it checks how much electromagnetic energy your device is unintentionally transmitting into the environment.

Key objectives of RE102:

• Prevent interference with nearby sensitive equipment.
• Ensure compatibility with communication and navigation systems.
• Maintain operational integrity in multi-system military platforms.

Typical frequency range:

• 10 kHz to 18 GHz (depending on equipment category)

If emissions exceed specified limits, the equipment could compromise other systems on ships, aircraft, or battlefield installations.

What is RS103?

RS103 evaluates radiated susceptibility, meaning it tests how well a device can operate when exposed to strong electromagnetic fields.

Key objectives of RS103:

• Ensure equipment continues functioning under high RF field strength.
• Validate resistance to radar signals, communication transmitters, and jamming environments.
• Verify operational stability in electromagnetic warfare conditions.

Typical test field strengths:

• Can range from 10 V/m to 200 V/m or more, depending on application.

RS103 is critical because in defense environments, equipment is often exposed to intense electromagnetic radiation from nearby transmitters and radar systems.

Why a 3-Meter Chamber is Essential

A 3-meter EMC chamber is a specially designed semi-anechoic or fully anechoic enclosure that provides a controlled electromagnetic environment for accurate testing. The 3-meter distance refers to the standardized separation between the antenna and the equipment under test.

This configuration is widely used for MIL-STD-461 compliance because it offers the ideal balance between:

• Measurement accuracy
• Physical space efficiency
• Cost-effectiveness
• Repeatability

Let’s explore why it is indispensable.

1. Accurate Field Uniformity for RS103

RS103 requires a uniform electromagnetic field across the test volume. Achieving this is extremely difficult in uncontrolled environments.

A 3-meter chamber provides:

• Consistent antenna-to-EUT distance.
• Stable field strength calibration.
• Controlled reflections due to RF absorber materials.
• Reliable and repeatable test conditions.

Without a properly designed chamber, RS103 results may become inconsistent or invalid, leading to certification failures or costly retesting.

2. Precise Radiated Emission Measurement for RE102

RE102 testing demands very low background noise and minimal reflections. A 3-meter chamber offers:

• Shielding from external EMI.
• Absorbers that reduce signal reflections.
• Accurate antenna positioning and polarization control.
• Repeatable test geometry.

This ensures that emissions measured truly come from the equipment and not from environmental interference.

3. Compliance with Test Geometry Requirements

MIL-STD-461 defines specific test setups:

• Antenna positioned 3 meters from the EUT.
• Equipment placed on a non-conductive table.
• Defined antenna height scanning.
• Horizontal and vertical polarization measurements.

A dedicated 3-meter chamber is designed to meet these geometric and mechanical requirements precisely, ensuring test validity.

4. Controlled and Repeatable Environment

Defense certification requires repeatable results. The 3-meter chamber offers:

• Stable temperature and humidity control.
• Constant electromagnetic background.
• Elimination of external radio signals.
• Documented and auditable test conditions.

This is critical for defense contracts where test repeatability and traceability are mandatory.

5. Reduced Risk of Compliance Failure

Failure in MIL-STD-461 testing can result in:

• Product redesign
• Delayed project timelines
• Increased costs
• Loss of defense contracts

Using a properly designed 3-meter chamber significantly reduces the risk of non-compliance by ensuring accurate measurements from the start.

6. Optimized Space and Cost

Compared to 10-meter or open-area test sites, a 3-meter chamber:

• Requires less floor space.
• Is easier to maintain.
• Is more cost-effective for in-house testing.
• Allows faster test cycles.

This makes it ideal for R&D labs and production validation facilities.

Design Features of a High-Quality 3-Meter Chamber

To meet MIL-STD-461 requirements for RE102 and RS103, a chamber should include:

• RF Shielding

  High-performance metal enclosure to block external EMI.

• RF Absorbers

  Hybrid absorbers (ferrite + foam pyramidal) for wideband absorption.

• Antenna Mast System

  Automated height and polarization control.

• Turntable or EUT Positioning System

  For orientation changes during emissions testing.

• High-Power RF Capability

  For RS103 field generation at high V/m levels.

• Field Monitoring Probes

  To ensure accurate and uniform field calibration.

• EMC Test Instrumentation

  Spectrum analyzers, EMI receivers, power amplifiers, signal generators, and control software.

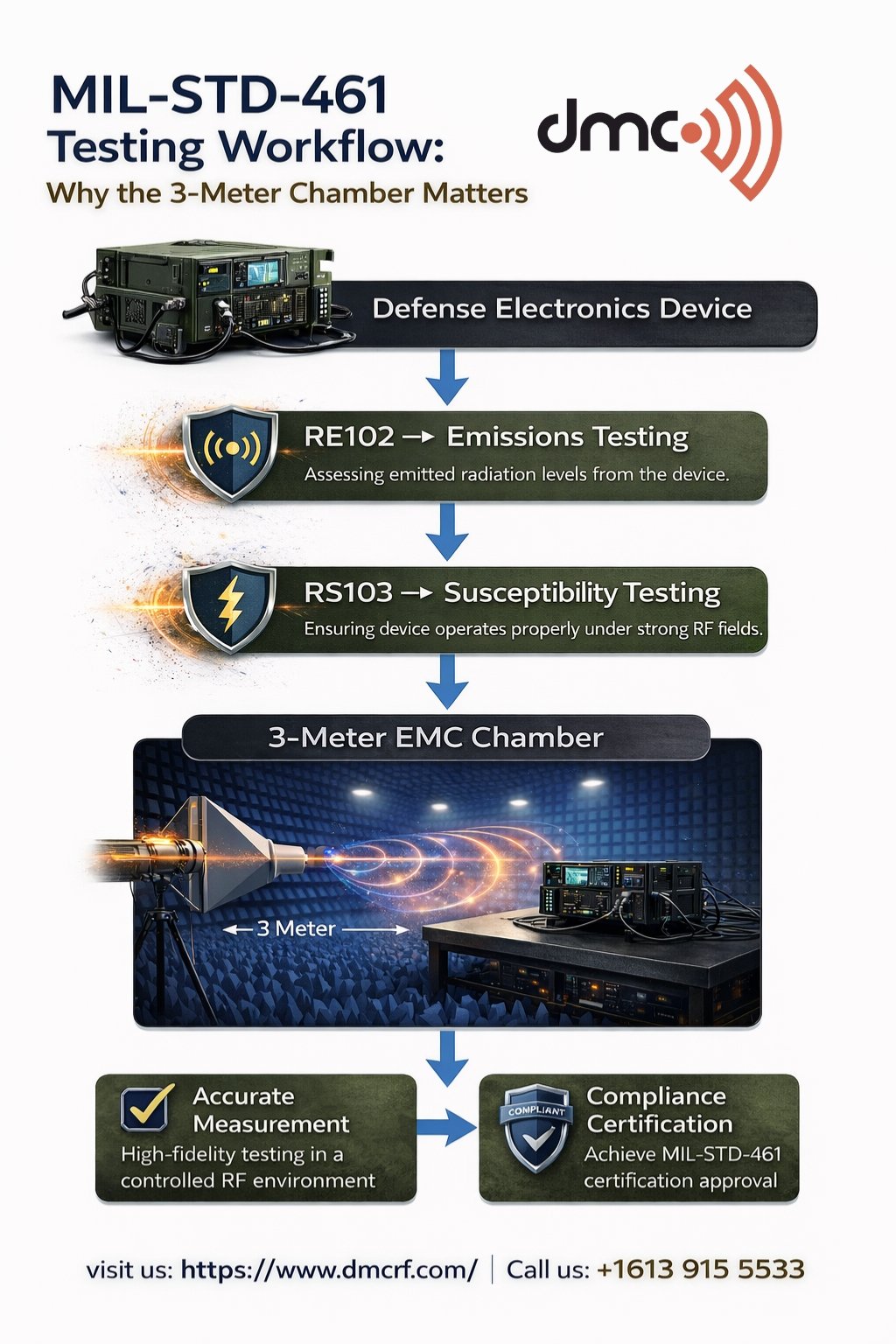

Role of the 3-Meter Chamber in Defense Electronics Development

A 3-meter chamber is not only for final compliance testing. It plays a key role throughout the product lifecycle:

1. Design Phase

   • Identify EMI issues early.
   • Optimize PCB layout and shielding.

2. Prototype Validation

   • Confirm design improvements.
   • Reduce risk before formal certification.

3. Pre-Compliance Testing

   • Simulate MIL-STD-461 test conditions.
   • Save time and money.

4. Final Certification

   • Generate official compliance data.
   • Support government acceptance.

RE102 vs RS103: How the 3-Meter Chamber Supports Both

3-Meter Chamber Role Accurate emission detection Controlled RF exposure

The same chamber, with proper configuration, supports both tests efficiently.

Future-Proofing Defense EMC Testing

As defense electronics become more complex and operate at higher frequencies, EMC requirements will only become stricter. A modern 3-meter chamber:

• Supports testing up to 18 GHz and beyond.
• Accommodates next-generation communication systems.
• Enables rapid qualification of advanced electronic platforms.

Investing in a high-quality chamber is not just about current compliance—it is about long-term readiness.

MIL-STD-461 compliance is non-negotiable in the defense industry. Tests such as RE102 and RS103 ensure that electronic systems neither disrupt nor succumb to electromagnetic interference in critical missions. The 3-meter EMC chamber is the backbone of these tests, providing a controlled, accurate, and repeatable environment essential for valid results.

Whether for product development, pre-compliance validation, or official certification, a 3-meter chamber:

• Enhances measurement accuracy
• Reduces compliance risk
• Saves time and cost
• Ensures defense-grade reliability

For any organization developing defense electronics, the 3-meter chamber is not just a testing facility—it is a strategic asset that ensures technological reliability, operational safety, and regulatory success.

Frequently Asked Questions

1. What is MIL-STD-461 and why is it important for defense electronics?

MIL-STD-461 is a military standard that controls electromagnetic interference (EMI) from electronic equipment. It ensures defense systems operate reliably without causing or suffering from electromagnetic disturbances in mission-critical environments.

2. What is RE102 testing in MIL-STD-461?

RE102 measures radiated emissions from equipment to ensure it does not produce excessive electromagnetic noise that could interfere with nearby defense systems such as radios, radar, or navigation equipment.

3. What is RS103 testing and why does it matter?

RS103 evaluates radiated susceptibility, meaning it tests how well electronic equipment can withstand strong electromagnetic fields. This ensures systems remain operational when exposed to radar signals, transmitters, and electronic warfare environments.

4. Why is a 3-meter EMC chamber used for MIL-STD-461 testing?

A 3-meter chamber provides a controlled, shielded, and low-reflection environment. It allows accurate measurement of emissions (RE102) and precise generation of RF fields for immunity testing (RS103), ensuring reliable and repeatable compliance results.

5. Can MIL-STD-461 testing be done without a 3-meter chamber?

Testing outside a properly designed 3-meter chamber can lead to inaccurate measurements due to external interference and signal reflections. This increases the risk of compliance failure, retesting costs, and project delays.
