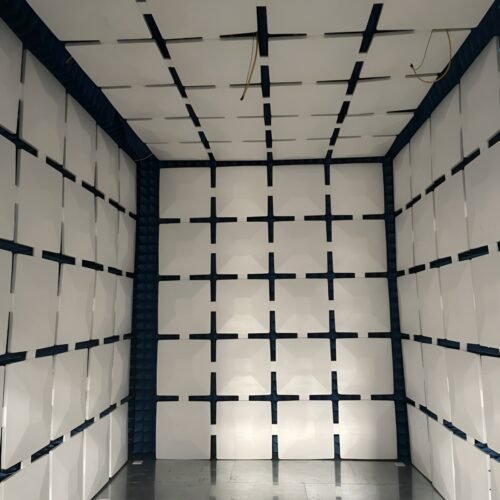

DMC offers EMI chamber for Military standard for Electromagnetic compatibility testing for Radiated, conducted susceptibility and emission testing.

Our standard Dimensions: 20’W x 20’L x 12’H with 12’W x 16’L x 8’H anteroom

• Chamber Shielding Effectiveness: 100 dB
• Equipment Access Door: 4’W x 8’H
• MIL-STD-461 Test Capability: CE101, CE102, CE106, RE101, RE102, CS101, CS103, CS104, CS105, CS114, CS115, CS116, RS103 (1-4 GHz and 8-18 GHz only)
• Azimuth Positioner Capacity: 2000 lbs

EMI Chamber Categories:

• Semi-Anechoic Chambers
• Fully Anechoic chambers
• Reverberation chambers
• GTEM Cells
• Shielded Enclosures

Testing Standards Covered

• FCC Part 15/18
• CISPR 11/22/25
• EN 55032 / EN 50147
• MIL-STD-461G
• ISO 11452-2
• IEC 61000-4 Series

Applications of EMI Chambers

• Product Compliance Testing
• Military and Aerospace Testing (MIL-STD-461, DO-160)
• Automotive Electronics Validation (CISPR 25, ISO 11452)
• Consumer Electronics EMC Pre-certification
