Compact Antenna Test Ranges (CATR) and the Role of High-Performance Absorbers

In today’s fast-evolving wireless world, antennas are everywhere—embedded in smartphones, satellites, radars, IoT devices, and even cars. The performance of these antennas directly affects communication reliability, device efficiency, and compliance with industry standards. But how do we test antennas accurately, especially at higher frequencies where precision is critical?

One of the most effective solutions is the Compact Antenna Test Range (CATR). By using specialized reflectors and high-performance RF absorbers, CATRs simulate free-space conditions in a controlled laboratory environment. This allows engineers to evaluate antenna performance with high accuracy, without requiring huge outdoor test ranges.

In this article, we will explore what CATRs are, how they work, the challenges they solve, and why absorber technology plays a central role in ensuring accurate and repeatable test results.



What is a Compact Antenna Test Range (CATR)?

A CATR is a specialized facility used to measure the performance of antennas, particularly at microwave and millimeter-wave frequencies. Unlike traditional outdoor ranges that require very long distances to achieve far-field conditions, CATRs create an equivalent far-field environment in a much smaller indoor space.

They achieve this by using a parabolic reflector that transforms a spherical wavefront (from a feed antenna) into a planar wavefront that mimics free-space far-field conditions.

Key Advantages of CATRs:

  • Space Efficiency – Requires far less room compared to outdoor ranges.
  • Controlled Environment – Free from weather conditions, RF interference, and background noise.
  • High Accuracy – Provides well-defined measurement zones for repeatable results.
  • Cost-Effective – Reduces infrastructure costs while supporting a wide range of test frequencies.

This makes CATRs especially valuable in industries such as satellite communications, aerospace & defense, automotive radar, and 5G/6G technology.



Why Antenna Testing Needs a Controlled Environment

Accurate antenna testing requires minimizing reflections, interference, and noise that can distort measurements. Even small amounts of unwanted RF energy bouncing around a chamber can degrade test accuracy.

For example:

  • Spurious reflections can cause phase and amplitude errors.
  • Multipath effects can alter radiation patterns.
  • External signals can interfere with sensitive measurements.

That’s where anechoic chambers and RF absorbers come into play.

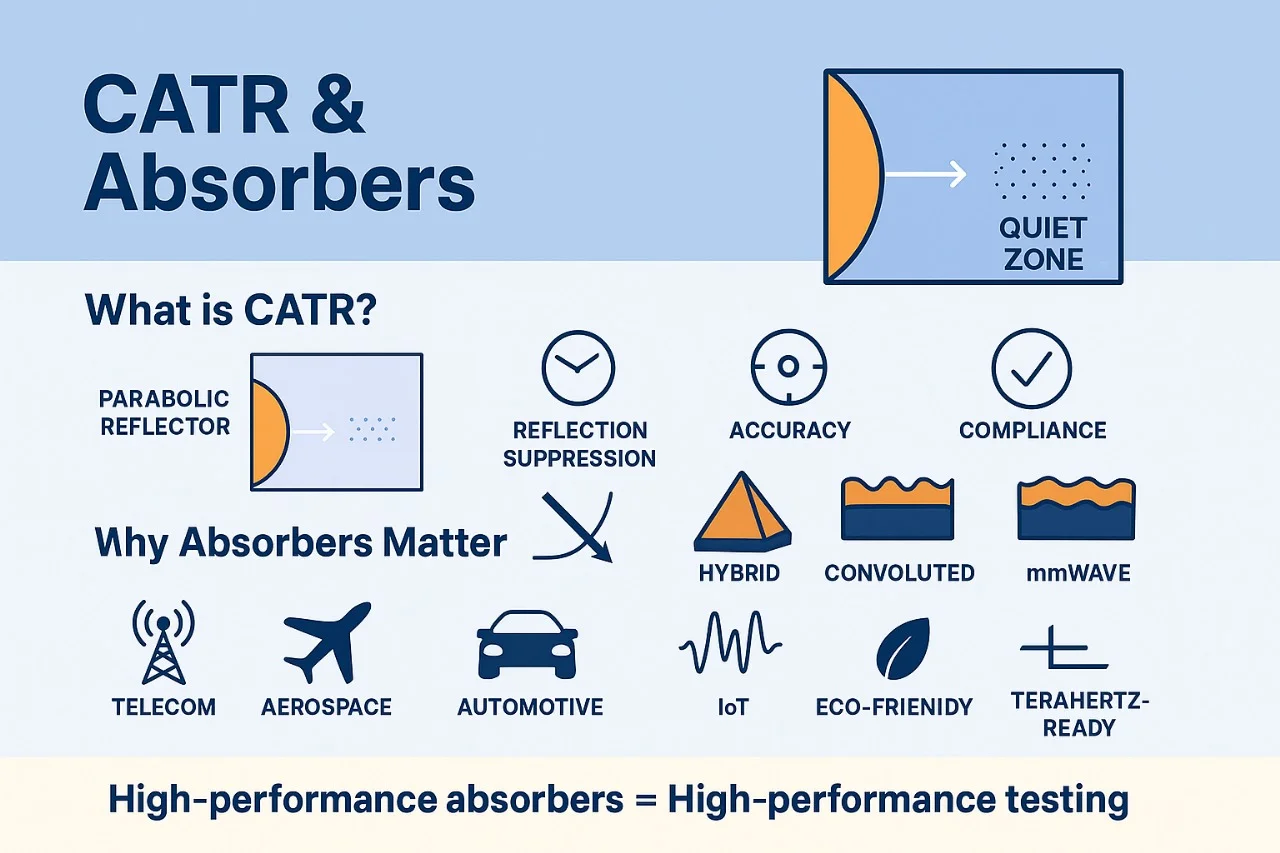

Compact Antenna Test Ranges img

Compact Antenna Test Ranges img



The Role of High-Performance Absorbers in CATRs

While the reflector creates the required planar wavefront in a CATR, it is the high-performance absorbers that ensure the environment remains free from unwanted reflections.

These absorbers are specially designed materials that attenuate electromagnetic waves by converting them into heat. They are strategically placed on chamber walls, floors, and ceilings to eliminate stray signals and simulate an “infinite free-space” environment.

Types of Absorbers Used in CATRs

Pyramidal Absorbers

  • Tall, pyramid-shaped structures.
  • Highly effective at higher frequencies (>1 GHz).
  • Provide broadband absorption and minimize backscatter.

Ferrite Tile Absorbers

  • Thin, flat tiles made of ferrite material.
  • Perform best at lower frequencies (30 MHz–1 GHz).
  • Often used as a base layer in hybrid designs.

Hybrid Absorbers

  • Combination of ferrite tiles and pyramidal foam absorbers.
  • Deliver wideband absorption from 30 MHz up to 100 GHz.
  • Ideal for CATRs that test across multiple frequency ranges.

Types of Absorbers Used in CATRs

Here’s a comparative table of the most common absorber types used in CATR facilities:

Absorber Type Frequency Range Best Features Applications
Ferrite Tile 30 MHz – 1 GHz Thin, flat, strong low-frequency absorption Base layer in hybrid chambers, EMC/antenna testing
Pyramidal Foam 1 GHz – 100+ GHz Excellent broadband absorption, lightweight High-frequency testing, radar, 5G/6G
Hybrid (Ferrite + Foam) 30 MHz – 100+ GHz Wideband coverage minimizes reflections at all ranges CATRs, anechoic chambers for aerospace & telecom





How Absorbers Enhance CATR Performance

1. Minimizing Reflections
Without absorbers, signals would bounce off the chamber walls and interfere with measurements. Absorbers reduce reflection levels by up to 60 dB or more.

2. Improving Quiet Zone Quality
The “quiet zone” is the central test area where the antenna under test (AUT) is placed. Absorbers ensure this zone has minimal interference, enabling highly accurate far-field measurements.

3. Supporting Wide Frequency Ranges
Modern devices operate across broad frequency bands. High-performance absorbers allow CATRs to support testing from MHz to millimeter-wave frequencies.

4. Reducing Test Errors
By suppressing multipath and chamber resonances, absorbers prevent errors in gain, polarization, and radiation pattern measurements.



Applications of CATRs with High-Performance Absorbers

CATRs with advanced absorber technology are widely used in industries where accuracy and reliability are non-negotiable:

  • Aerospace & Defense – Testing satellite communication antennas, radar systems, and electronic warfare equipment.
  • Telecommunications – Validating antennas for 5G/6G base stations, IoT devices, and mobile handsets.
  • Automotive – Evaluating radar sensors used in advanced driver-assistance systems (ADAS).
  • Research & Academia – Supporting R&D in electromagnetics, antenna design, and RF systems.



Key Design Considerations for a High-Quality CATR

To ensure optimal results, CATRs must be carefully designed with the following in mind:

Reflector Size and Shape – Determines the quiet zone dimensions and frequency range.

Absorber Performance – Choice of absorber material impacts accuracy at different frequencies.

Chamber Dimensions – Adequate spacing is required to minimize diffraction and scattering.

Feed Antenna Positioning – Proper alignment ensures uniform planar wavefronts.

Environmental Control – Stable temperature and low humidity preserve absorber effectiveness.

Design Considerations for High-Performance CATRs

Design Factor Importance Impact on Accuracy
Reflector Size/Shape Defines a quiet zone Larger reflectors = better wavefront uniformity
Absorber Quality Determines reflection suppression High-performance absorbers = cleaner results
Chamber Dimensions Controls diffraction & scattering Bigger chambers reduce edge effects
Feed Antenna Alignment Generates uniform plane waves Misalignment leads to distorted patterns
Environmental Stability Maintains absorber performance Temperature/humidity can affect results





The Future of Antenna Testing: Evolving Role of Absorbers

As industries move toward higher frequencies (mmWave, THz) and more compact devices, CATRs will continue to evolve. High-performance absorbers will play an increasingly critical role in:

  • Supporting wideband 5G/6G testing.
  • Minimizing errors in automotive radar validation.
  • Enabling compact chambers for urban labs and R&D centers.
  • Maintaining compliance with stricter international testing standards.

In short, the accuracy of future wireless systems depends on how well CATRs and absorber technologies adapt to next-generation requirements.



The Compact Antenna Test Range (CATR) has become a cornerstone of modern antenna measurement, providing a controlled, space-efficient, and highly accurate testing environment. However, the success of any CATR depends heavily on the quality of its high-performance absorbers.

By minimizing reflections, improving quiet zone quality, and supporting wide frequency ranges, absorbers ensure that antenna testing results are reliable, repeatable, and compliant with global standards.

As wireless technology continues to advance, the demand for precision in antenna testing will only grow—and with it, the critical role of absorber innovation in Compact Antenna Test Ranges.
