Absorber Layout & EMC Design Considerations for Accurate 3m Chamber Testing

Electromagnetic Compatibility (EMC) testing is a cornerstone of product development, ensuring devices meet international standards before they reach the market. For radiated emissions and immunity measurements, the 3-meter EMC chamber remains the most widely used test environment. To achieve accurate, repeatable, and compliant results, careful attention must be given to absorber layout and chamber design considerations.

This article explores the critical aspects of absorber arrangement, chamber design parameters, and best practices that engineers and compliance managers must consider when planning or validating a 3m chamber.

Why Absorber Layout Matters in a 3m Chamber

Absorbers are the backbone of any EMC test chamber. Their primary role is to minimize reflections from chamber walls, floor, and ceiling, thereby simulating a free-space environment. The quality of the absorber layout directly impacts:

Measurement accuracy – Uncontrolled reflections can distort emissions readings.
Compliance confidence – Regulatory bodies (FCC, CE, CISPR, MIL-STD) expect validated chamber performance.
Test repeatability – Poor layout may cause inconsistent results across test sessions.

In short, a chamber is only as good as its absorber configuration.

Key EMC Design Considerations for 3m Chambers

Designing a compliant 3m chamber requires balancing multiple engineering parameters. Below are the most important factors:

1. Chamber Size & Geometry

- Length & Width: Typically, 6–9 meters long and 4–6 meters wide.
- Height: Must accommodate test equipment and maintain the 3m test distance.
- Geometry: A rectangular chamber is most common, but dimensions should reduce parallel reflections.

2. Ground Plane & Floor Treatment

Conductive ground plane ensures proper reference for radiated emission tests.
Partial floor absorbers may be used in pre-compliance chambers, but accredited setups require fully conductive ground planes.

3. Absorber Types

Ferrite tiles: Effective from 30 MHz to 1 GHz.
Pyramidal absorbers: Work best above 1 GHz, usually combined with ferrite tiles for broadband performance.
Hybrid absorbers: Ferrite + pyramid to cover 30 MHz – 18 GHz range.

4. Absorber Placement Strategy

Ceiling and side walls: Fully covered with hybrid absorbers.
Rear wall (opposite the antenna): Needs optimized pyramid layout to minimize direct reflections.
Corners: Absorber wedges improve scattering and reduce “hot spots.”

5. Antenna & EUT Positioning

Antenna distance: Fixed at 3 meters from the Equipment Under Test (EUT).
Height scanning: Antenna typically moves between 1m and 4m to capture maximum emissions.
EUT rotation: Placed on a turntable to allow 360° measurement.

Table: Absorber Layout & EMC Chamber Design Guidelines

Design Aspect	Recommendation	Impact on Testing
Chamber Dimensions	6–9m length, 4–6m width, adequate height	Ensures proper 3m separation & compliance
Ground Plane	Fully conductive, bonded copper/aluminium floor	Provides reference ground, reduces errors
Absorber Type	Ferrite tiles (30 MHz–1 GHz), pyramidal absorbers (>1 GHz), hybrid for broadband	Full frequency coverage
Wall Absorber Layout	Hybrid absorbers on all side walls	Reduces reflections, simulates free-space
Ceiling Treatment	Full absorber coverage	Minimizes overhead reflections
Rear Wall Layout	Optimized pyramid absorber arrangement	Eliminates direct backscatter
Corners & Junctions	Wedge or angled absorbers	Prevents localized resonance
Antenna Position	3m distance, 1–4m height scanning range	Accurate emissions capture
EUT Placement	On a rotating turntable, centered on the ground plane	Ensures full directional coverage

Common Pitfalls in 3m Chamber Absorber Layout

Even well-designed chambers may suffer from issues if not carefully planned. Common mistakes include:

Inconsistent absorber density – Leaving gaps or uneven distribution causes measurement anomalies.

Improper absorber type selection – Using ferrites alone limits high-frequency accuracy.

Poor grounding – An uneven or poorly bonded ground plane can lead to inaccurate results.

Antenna misalignment– Even small deviations from the 3m rule can impact compliance.

Neglecting validation – Regular chamber validation (NSA, VSWR, field uniformity) is required for accredited testing.

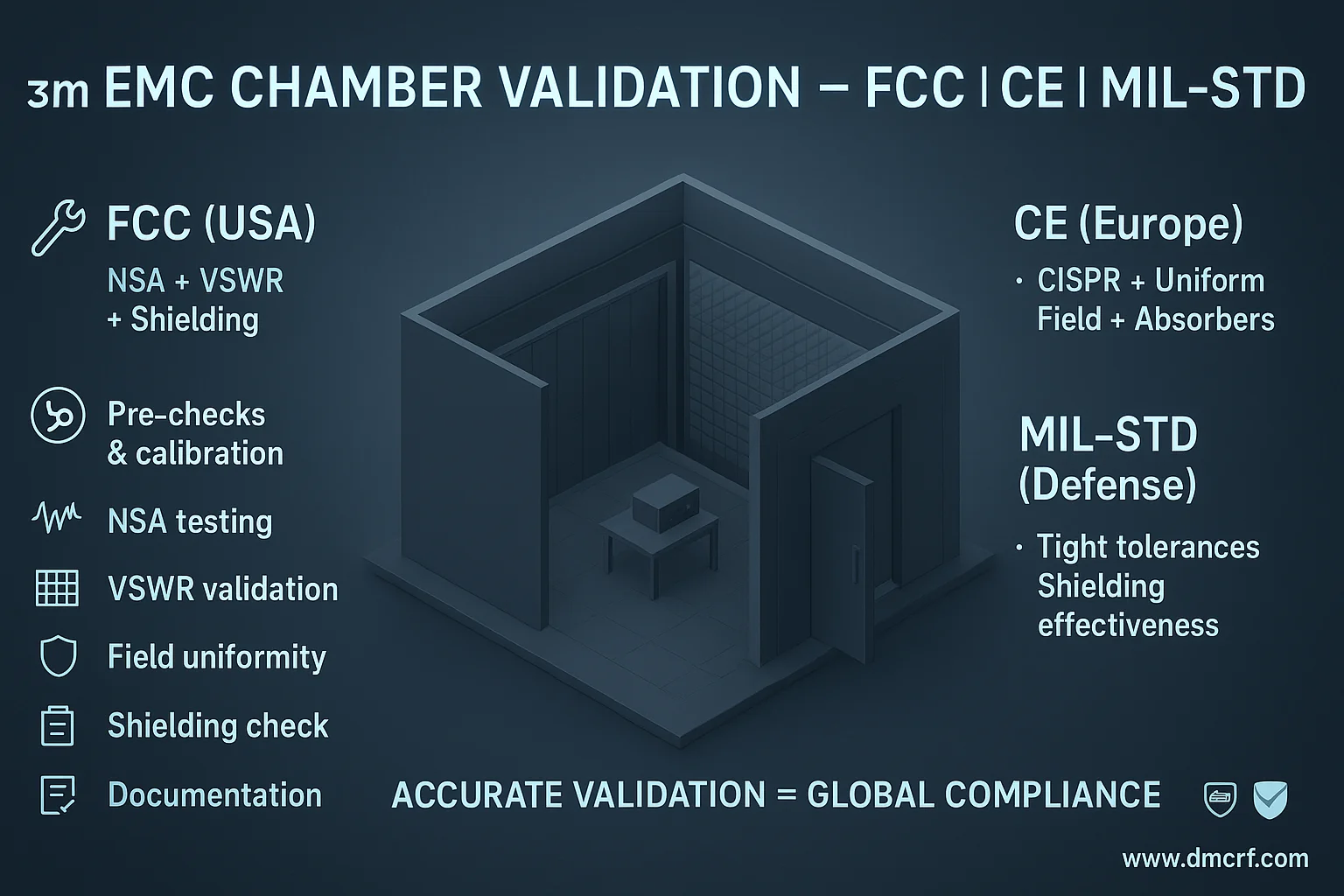

Validation of 3m Chambers

A chamber design is only complete after thorough validation. International standards such as CISPR 16-1-4, ANSI C63.4, and IEC 61000-4-3 require validation steps, including:

Normalized Site Attenuation (NSA) – Ensures free-space simulation accuracy.
Site VSWR (SVSWR) – Checks absorber performance above 1 GHz.
Field Uniformity Tests – Confirms immunity chamber effectiveness.

These validation checks must be repeated periodically (typically every 2–3 years) or after significant Absorber or structural changes.

Best Practices for Accurate 3m Chamber Testing

1. Use hybrid absorbers for full broadband coverage (30 MHz – 18 GHz).

2. Maintain strict 3m antenna–EUT separation with calibrated positioning equipment.

3. Plan absorber layout during chamber construction, not as an afterthought.

4. Validate frequently to ensure compliance with FCC, CE, and MIL-STD requirements.

5. Partner with experienced chamber designers to avoid costly retrofits.

For any organization conducting compliance testing, the absorber layout and EMC design of a 3m chamber directly determine accuracy, repeatability, and regulatory acceptance. By carefully considering chamber dimensions, ground plane integrity, absorber type and placement, and rigorous validation protocols, test engineers can ensure their facility delivers reliable and internationally compliant results.

Investing in the right design approach upfront not only ensures smooth compliance certification but also reduces long-term operational costs by preventing inaccurate or rejected test reports.
