DMC Polyurethane (PU) Hybrid absorbers are made of carbon-impregnated low-density Polyurethane foam and come in various sizes and colors. Our PY-HY series absorbers provide excellent performance in normal incidence and off-angle incidence in Anechoic chamber with excellent impedance matching with Ferrite tiles and support wide frequency bands of operation up to 40 GHz.
Standard Absorber

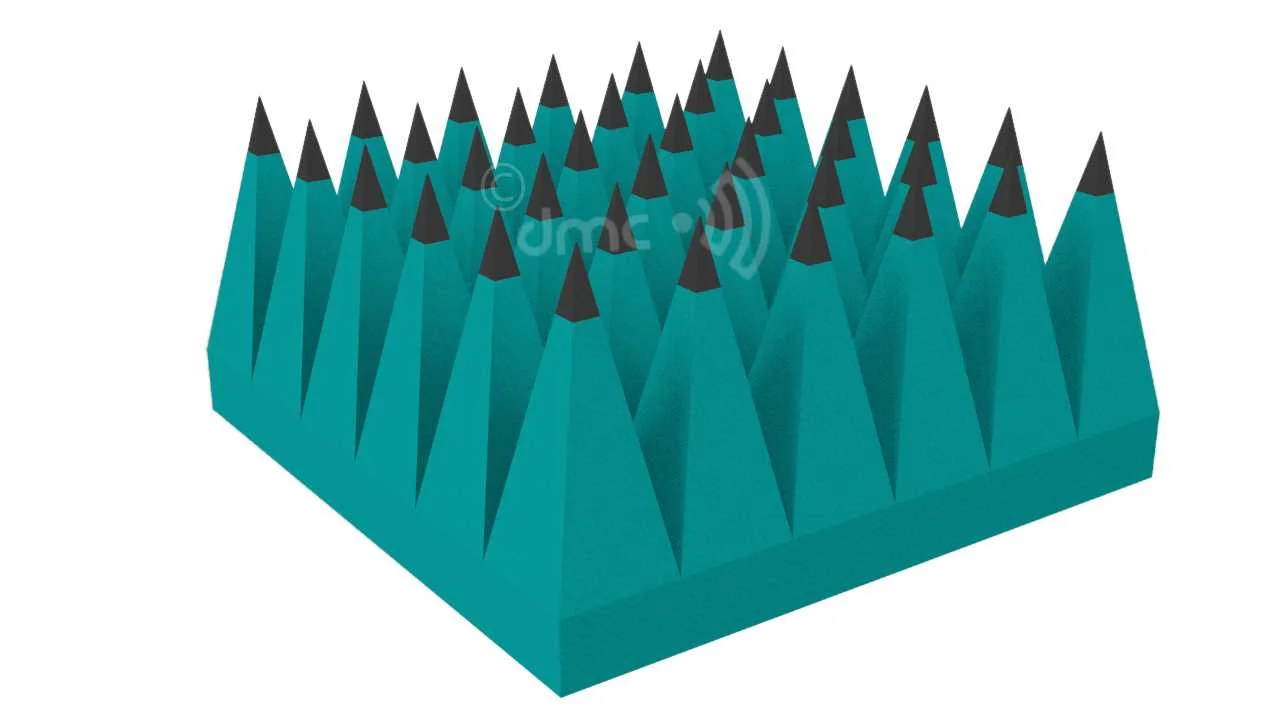

High-Performance Pyramidal Hybrid EMC Absorber
DMC series offers premium quality high-performance Polyurethane(PU) Hybrid EMC absorbers made of carbon-impregnated low-density Polyurethane foam and comes in various sizes and colors.
- Frequency range 30MHz to 40GHz
- Typical reflectivity as high as -35dB
- Power handling capacity 1.5kW/m2, 540 V/m CW Radiated field strength
- Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
- Continuous working temperature up-to 90°C
- RoHS Compliant
- Zero Carbon dust
Broadband High-Performance Pyramidal Microwave Absorber
DMC series offers premium quality Broadband high-performance Polyurethane (PU) Microwave absorbers made of carbon-impregnated low-density Polyurethane foam and comes in various sizes and colors.
- Frequency range 80MHz to 100GHz
- Typical reflectivity as high as -50dB
- Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
- Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
- Continuous working temperature up-to 90°C
- RoHS Compliant
- Zero Carbon dust

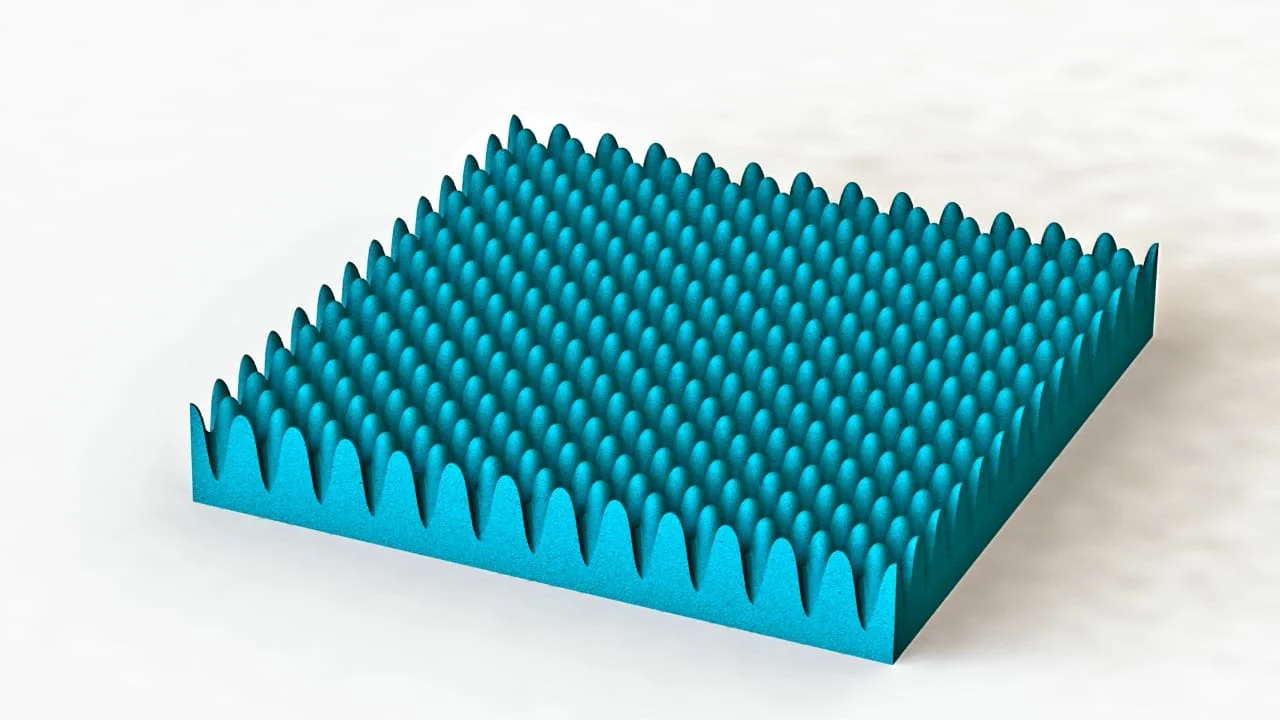

Convoluted Microwave Absorber
DMC offers Polyurethane Convoluted Absorbers that are used in millimeter-wave test chambers and in areas where non-specular/ near field scattering signals are to be minimized.
- Frequency range 8GHz to 80GHz
- Typical reflectivity as high as -30dB
- Fire Retardant per NRL-8093 1,2,3, with Zero Halogen
- Continuous working temperature up-to 90°C
- RoHS Compliant
- Zero Carbon dust
