Stainless Steel Honeycomb Core

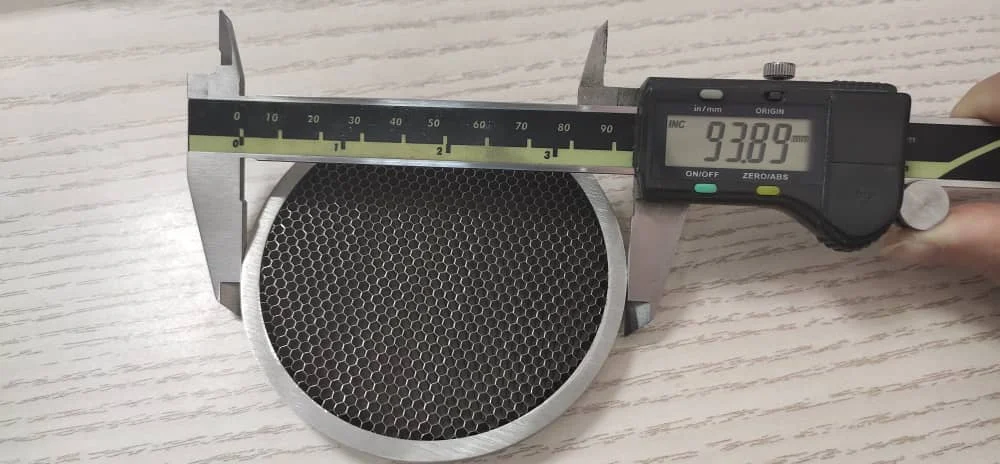

Stainless Steel Honeycomb

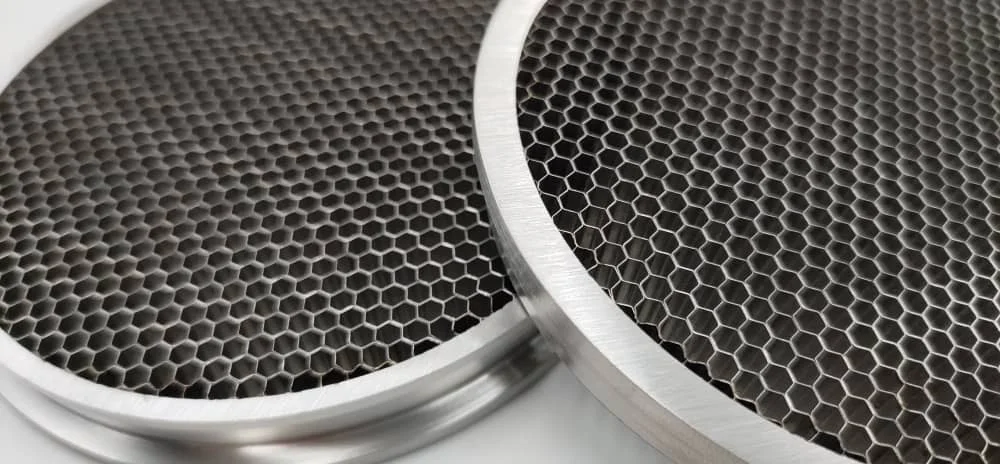

Features include fire resistant, fungi Resistant, excellent moisture and corrosion resistance etc. It is widely used in honeycomb ventilation panels, dust-filter, flow straightening in wind tunnel or water tunnel, waterjet cutting machines, electromechanical platform, train doors and floors, bulkheads, energy absorber, laser cutter machines, extraction table, etc. In the context of petroleum product counting, stainless steel honeycomb core is currently used to replace aluminum honeycomb to tranquilize the products.

Standard Material: SUS304, SUS316L
Standard Wall Thickness: 0.13mm
Production Process: Laser welding/ Butt welding / Brazing
Cutting Process: Laser cutting/ Wire cutting
Price: Expensive
Package: Carton box or plywood box

DMC stainless steel honeycomb is available based on below conditions

  • Material: 304 stainless steel, 316L stainless steel & 321 stainless steel, special materials such as Nickel can be customized.
  • Cell size: 0.8mm, 1.6mm, 2.4mm, 3.2mm, 6.4mm, 10mm, 20mm etc.
  • Surface treatment: can be plated with Tin, Ni, Zn, Cr after electric oxidation.
  • W*L: 60*60, 120*120, 300*300, 600*600, 1000*2000mm. Can be customized.
  • Core thickness: 5mm-200mm.
  • Cell wall gauge: 0.08mm, 0.1mm, 0.13mm, 0.15mm, 0.2mm etc.

Technical Properties

Material SS304,SS316L,SS321
Cell Size 1.6mm, 2.4mm, 3.2mm, 6.4mm, 8.2mm, 10mm, 20mm
Surface Treatment Can be plated with Tin, Ni, Zn, Cr after electric oxidation
W*L 60*60, 120*120, 300*300, 600*600, 1000*2000
Core Thickness 5mm-200mm
Cell Wall Gauge 0.08mm, 0.1mm,0.13mm,0.15mm,0.2mm
Note:The above data are to the best of our knowledge correct and are intended to give information about our products and their potential applications,  No warranty is given or implied in respect of  certain properties of the products or their suitability for a particular application. We reserve the right for technical changes without further notice. We guarantee impeccable product quality under our terms of sale,Â
