Special Purpose RF And Microwave Absorber

Special Purpose RF And Microwave Absorber

DMC offers custom shape and size of broadband premium quality high performance absorbers of both Polyurethane and Expanded Polypropylene (EPP) absorbers for EMC chamber and Antenna chamber application.

RF Flat Absorber Sheet 50mm

Broadband High Performance RF and Microwave Flat Absorber – Polyurethane (PU)

DMC series of Ultra-premium high performance Polypropylene Hybrid Absorbers are made of the molding process and the State-of-the-art carbon synthesis process ensures extremely high uniformity of carbon powder density throughout the absorber.

  • Frequency range 80MHz to 100GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 90°C
  • RoHS Compliant
  • Zero Carbon dust
Request Quote
More Details
Polypropylene RF Flat Absorber

Broadband High Performance RF and Microwave Flat Absorber – Expanded Polypropylene (EPP)

DMC series of Ultra-premium high performance Polypropylene Flat Absorbers are made of molding process and State-of-the-art carbon synthesis process to ensure extremely high uniformity of carbon powder density throughout the absorber.

  • Frequency range 1GHz to 40GHz
  • Typical reflectivity as high as -39dB
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust
Request Quote
More Details

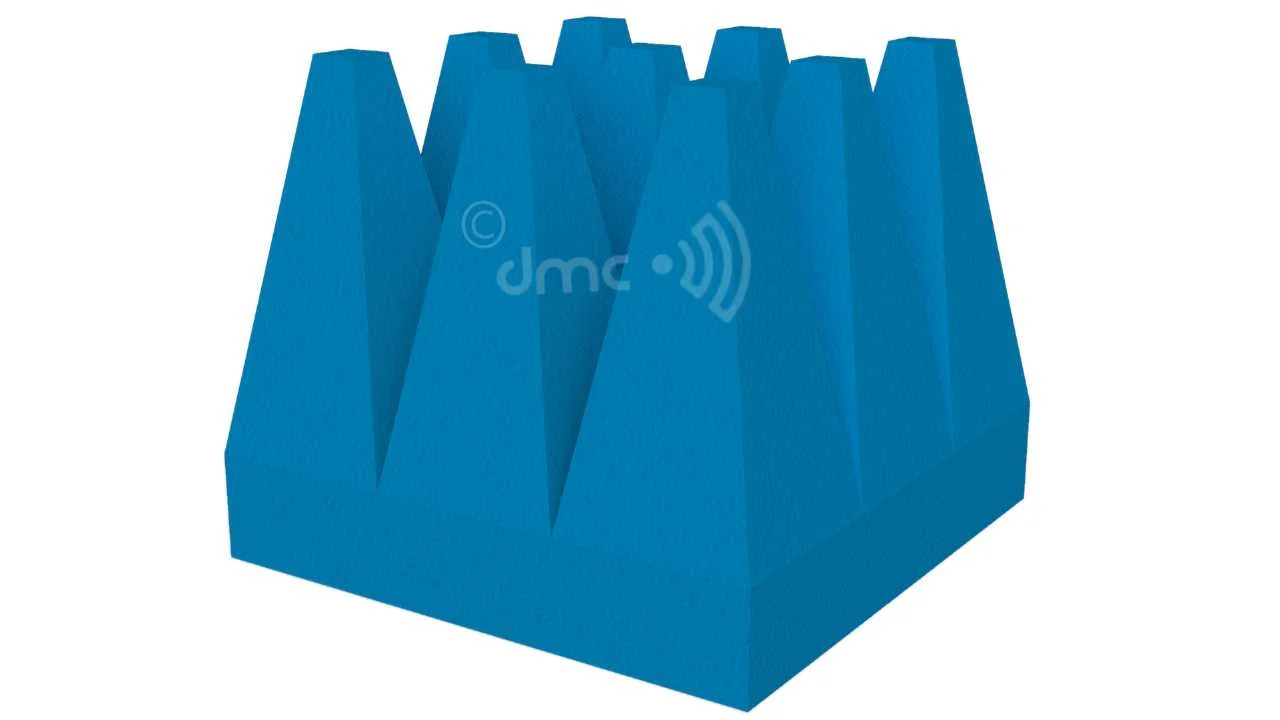

Truncated RF absorber 500mm

Broadband High Performance RF and Microwave Truncated Absorber

DMC series of Truncated Polyurethane foam based Hybrid Absorbers are mainly used in EMC chambers and they are made by removing 20% of pyramid absorber tips to give similar performance as standard pyramid absorbers at low frequency with ferrite tiles.

  • Frequency range 30MHz to 40GHz
  • Typical reflectivity as high as -30dB
  • Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 90°C
  • RoHS Compliant
  • Zero Carbon dust
Request Quote
More Details
RF Wedge Absorber 300mm

Broadband High Performance RF and Microwave Wedge Absorber

DMC Polyurethane Wedge Absorbers are mainly used in Antenna test chambers, Compact range and GTEM cells.

  • Frequency range 500MHz to 100GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 1.5kW/m2,540 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 90°C
  • RoHS Compliant
  • Zero Carbon dust
Request Quote
More Details
RF WALKWAY ABSORBER

High Performance RF and Microwave Walkway Absorber – Expanded Polypropylene (EPP)

DMC walkway absorber structure is topped with a higher density Polypropylene laminate. PP-WW series offer excellent load bearing and wear characteristics. The material’s ability to withstand higher loads than most walkway materials is due to the construction technique. The standard Walkway absorbers are available in 600mmx600mm or 600mmx1200mm footprint dimensions. Custom sizes and shapes can be provided, The walkway absorber is taller than standard absorber. We generally recommend using walkways one size smaller than surrounding absorbers. Typical reflectivity data can be provided upon request.

  • Frequency range 500MHz to 40GHz
  • Typical reflectivity as high as -45dB
  • Max load capacity 302 kg/m2
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust
