RFI EMC Filters Accessories FCL 55, -66, -660 Series

UL APPROVED CABINETS DMC-FC-20 000 SERIES

RFI EMC Filters Accessories FCL

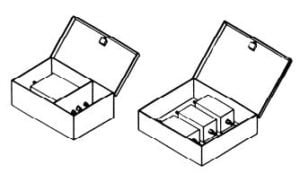

DMC-FCL 55, -66, -660 Series Filters are available installed in UL approved cabinets with standard knockouts.

Select suitable size from chart

Part No  Dimensions (inches)
DMC-FC-20 000-1 10 x 10 x 3
DMC-FC-20 000-2 18 x 12 x 4
DMC-FC-20 000-3 18 x 12 x 6
DMC-FC-20 000-4 24 x 18 x 6



DMC-COIL DISCHARGE UNIT FC-10 000 SERIES

RFI/EMC filters contain large, high quality capacitor sections which can store dangerous charges of electrical energy long after the main source of electrical power has been turned off,  All filtered circuits and power supply lines can present a serious hazard to personnel and equipment unless filter capacitors are properly and safely discharged,  The capacitor discharge device is a mandatory safety requirement under NEC 460 and NEMA

Standard 11-17-1960.



Part No Application
DMC-FC-10 000-1 1 filtered circuit
DMC-FC-10 000-2 2 filtered circuit
DMC-FC-10 000-3 3 filtered circuit
DMC-FC-10 000-4 4 filtered circuit

Red Pilot light furnished for each filtered circuit.
