Polypropylene Hybrid EMC Absorber

Polypropylene Hybrid EMC Absorber

DMC Expanded Polypropylene hybrid electromagnetic wave absorber was designed with state-of-the-art technology to ensure extremely high uniformity of carbon powder density throughout the absorber. When used with ferrite tile, the PP-HY series has a broadband operating frequency range starting from 10 MHz to 40 GHz.

  • Frequency range 30MHz to 40GHz
  • Typical reflectivity as high as -49dB
  • Plug and Pull install
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust

Part number reference:
DMC-PP-HY-300, DMC-PP-HY-500 , DMC-PP-HY-750

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB

Model Number 30 MHz 50 MHz 100 MHz 500 MHz 1 GHz 3 GHz 5 GHz 10 GHz 18 GHz 40 GHz
DMC-PP-PY-HY-300 18 26 23 17 16 18 23 27 33 34
DMC-PP-PY-HY-500 19 26 23 19 20 25 28 36 44 46
DMC-PP-PY-HY-750 21 25 22 21 25 29 33 41 47 49

DMC-PP-PY-HY-300

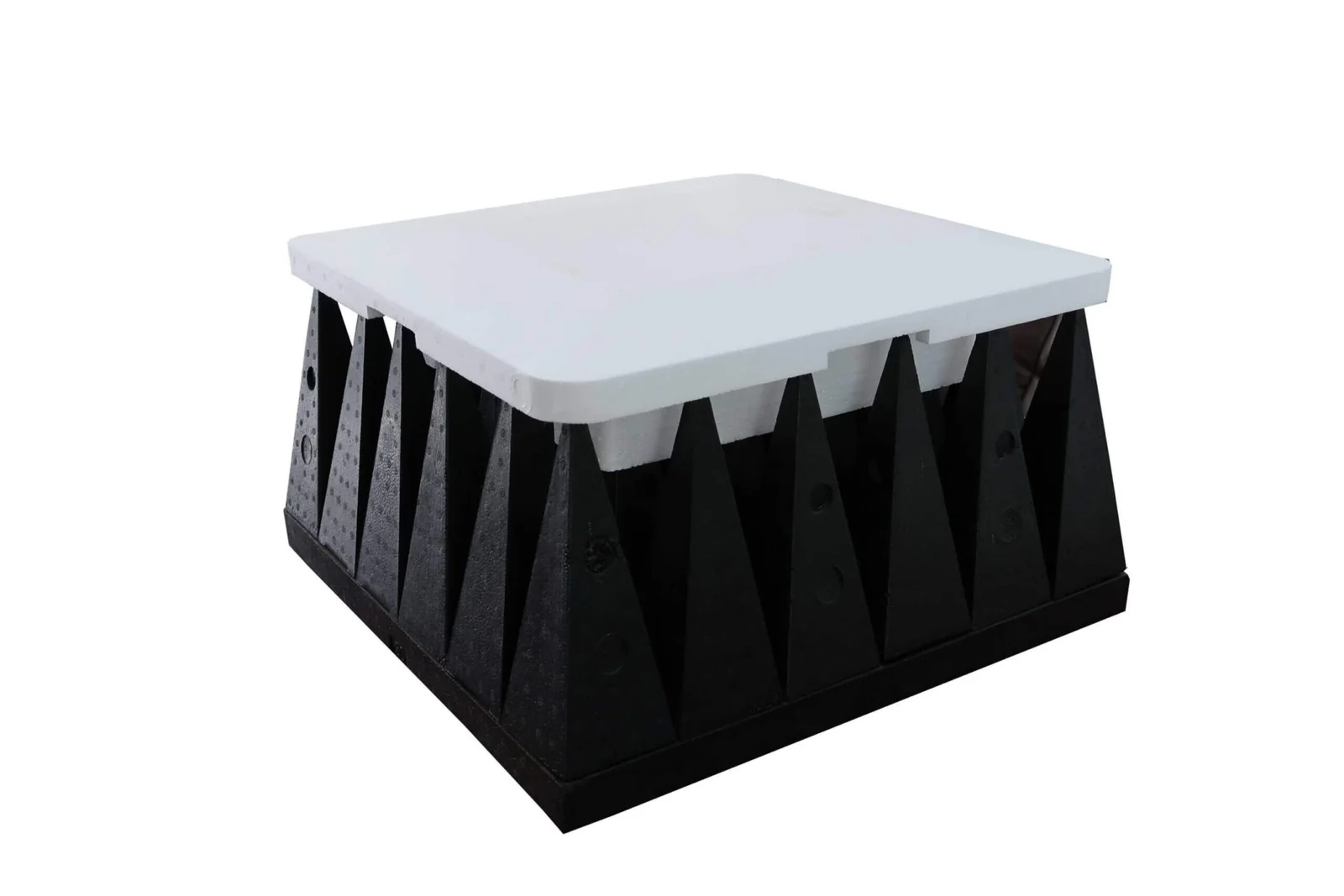

Polypropylene Pyramidal EMC Absorber

DMC-PP-PY-HY-500

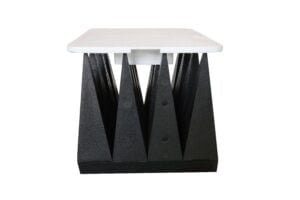

High Power Pyramidal EMC absorber
