Polypropylene Honeycomb Core

Polypropylene Honeycomb Core

PP honeycomb core is one of plastic honeycomb cores which is made of polypropylene material. As a lightweight, high strength, non-metallic, non-toxic, shockproof, long lifespan, eco-friendly and recyclable core material, pp honeycomb sheet is suitable to be bonded with FRP, wood grain sheet, aluminum plate, stainless steel sheet, marble sheet or rubber sheet etc to be used in truck body, mobile house, caravan and package.

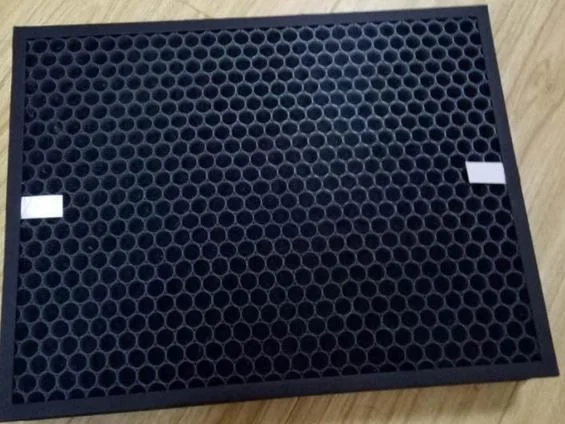

Furthermore, bare core can be used in air filter and as flat surface for cutting tools (waterjet cutting machines). But a significant shortcoming of pp honeycomb core is its operating temperature cannot exceed 80 degree C. We also provide pp honeycomb panels.

Material: Polypropylene
Supply Form: With or without non-woven polyester fabric; With or without pp film barrier

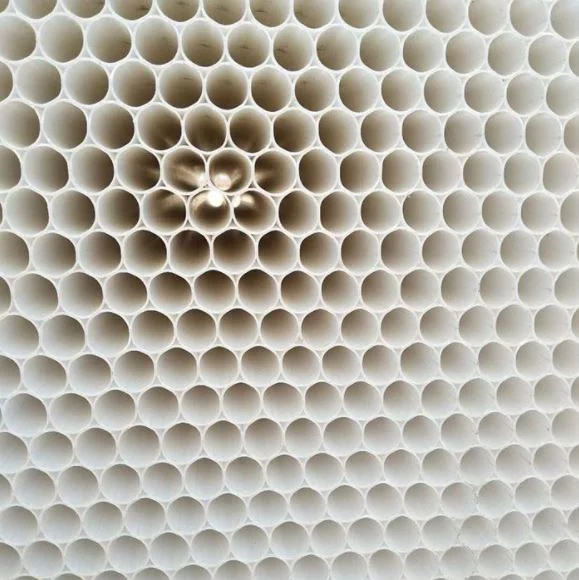

Each cell has a tubular form
Working Temperature: -40℃- 80℃
Standard Density: 80KG/M3
Package: Pallet+paper corner protector+wrapping film

Polypropylene honeycomb core are available based on below specifications

  • Standard Dimension: 1220*2440mm;
  • Core Thickness: 5mm-100mm;
  • Standard Cell Size: 8mm, 10mm & 12mm;
  • Recommended Size For Full Container: 1150*2300mm.

Technical Properties

Item Color Cell  Size(mm) Density
(Kg/m3)
Compression    strength (MPa) Compression    modulus (MPa) Shear    Strength (MPa) Effective    Temperature
(oC)
Thermal

Insulation U-value (W/ m2k)

1 White 8 80 1.66 45.7 0.5 -40 – +80 2.2
2 White 10 75 1.58 41.2 0.45 -40 – +80 2.2
3 White 12 70 1.47 38.9 0.4 -40 – +80 2.3
Note:This table presents values of honeycomb obtained from testing specimens of 30mm  thickness, Data is based on results gained from experience and tests and is  believed to be accurate yet without acceptance of liability for loss or  damage incurred and attributable , to reliance thereon as conditions of use lie outside our control,
