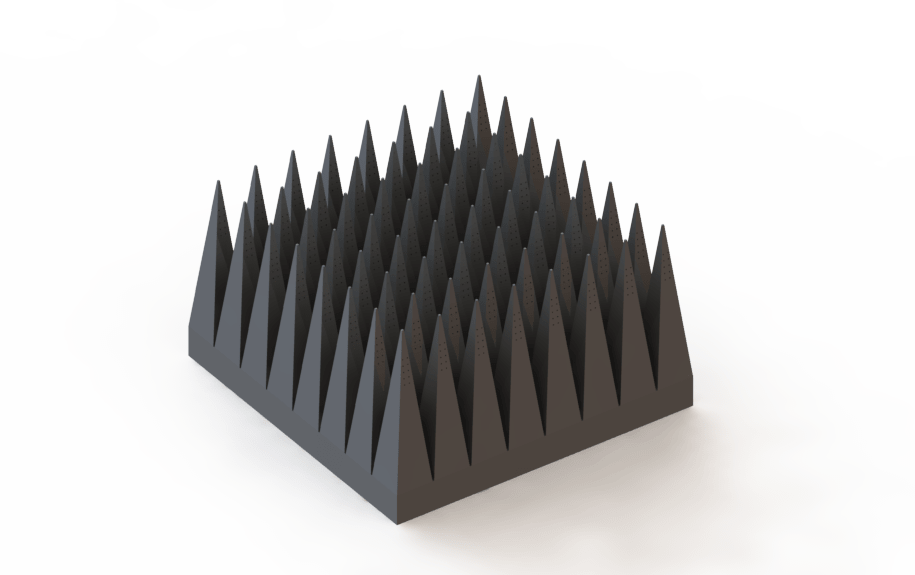

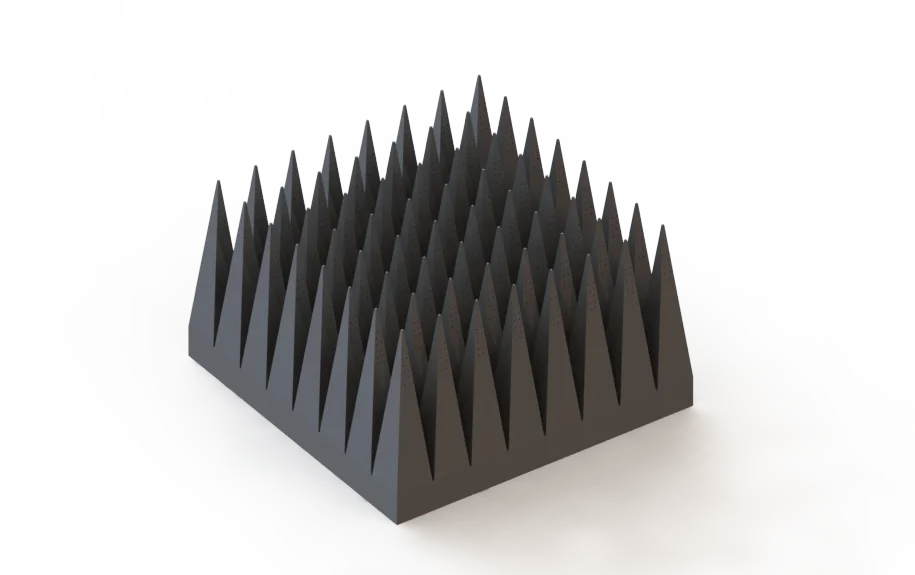

High Power RF Microwave Foam Absorber

High Power RF Foam Absorber

DMC offers high performance Flame retardant and High power RF Foam absorber, and are hollow broadband microwave absorbers made of heat resistant non-woven fabric dipped with flame retardants and microwave absorbing
agent.

  • Frequency range 30MHz to 100GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 6kW/m2
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 150°C
  • RoHS Compliant
  • Zero Carbon dust

Part number reference:
DMC-HP-PY-FR-200, DMC-HP-PY-FR-300, DMC-HP-PY-FR-500, DMC-HP-PY-FR-700, DMC-HP-PY-FR-1000, DMC-HP-PY-FR-1200, DMC-HP-PY-FR-1500, DMC-HP-PY-FR-1600

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB

Model Number 30 MHz 80 MHz 300 MHz 500 MHz 1  GHz 3 GHz 6 GHz 10 GHz 18 GHz 40 GHz 100 GHz
DMC-HP-PY-FR-200 27 35 40 45 50 50 45
DMC-HP-PY-FR-300 25 35 40 50 50 50 50 45
DMC-HP-PY-FR-500 20 30 40 45 50 50 50 50 45
DMC-HP-PY-FR-700 8 25 35 40 50 50 50 50 50 45
DMC-HP-PY-FR-1000 11 30 40 45 50 50 50 50 50 45
DMC-HP-PY-FR-1200 5 13 35 40 45 50 50 50 50 50 45
DMC-HP-PY-FR-1500 11 14 35 40 50 50 50 50 50 50 45
DMC-HP-PY-FR-1600 14 16 35 45 50 50 50 50 50 50 45

DMC-HP-PY-FR-300

High Power RF absorber 300mm

DMC-HP-PY-FR-500

High temperature RF Absorber

DMC-HP-PY-FR-700

High Temperature EMC Absorber
