High Performance Hybrid RF Pyramidal absorber

High Performance Hybrid RF Pyramidal absorber

DMC offers premium quality Expanded Polypropylene (EPP) high performance RF Pyramidal absorbers made of molding process and the State-of-the-art carbon synthesis process ensures extremely high uniformity of carbon powder density throughout the absorber.

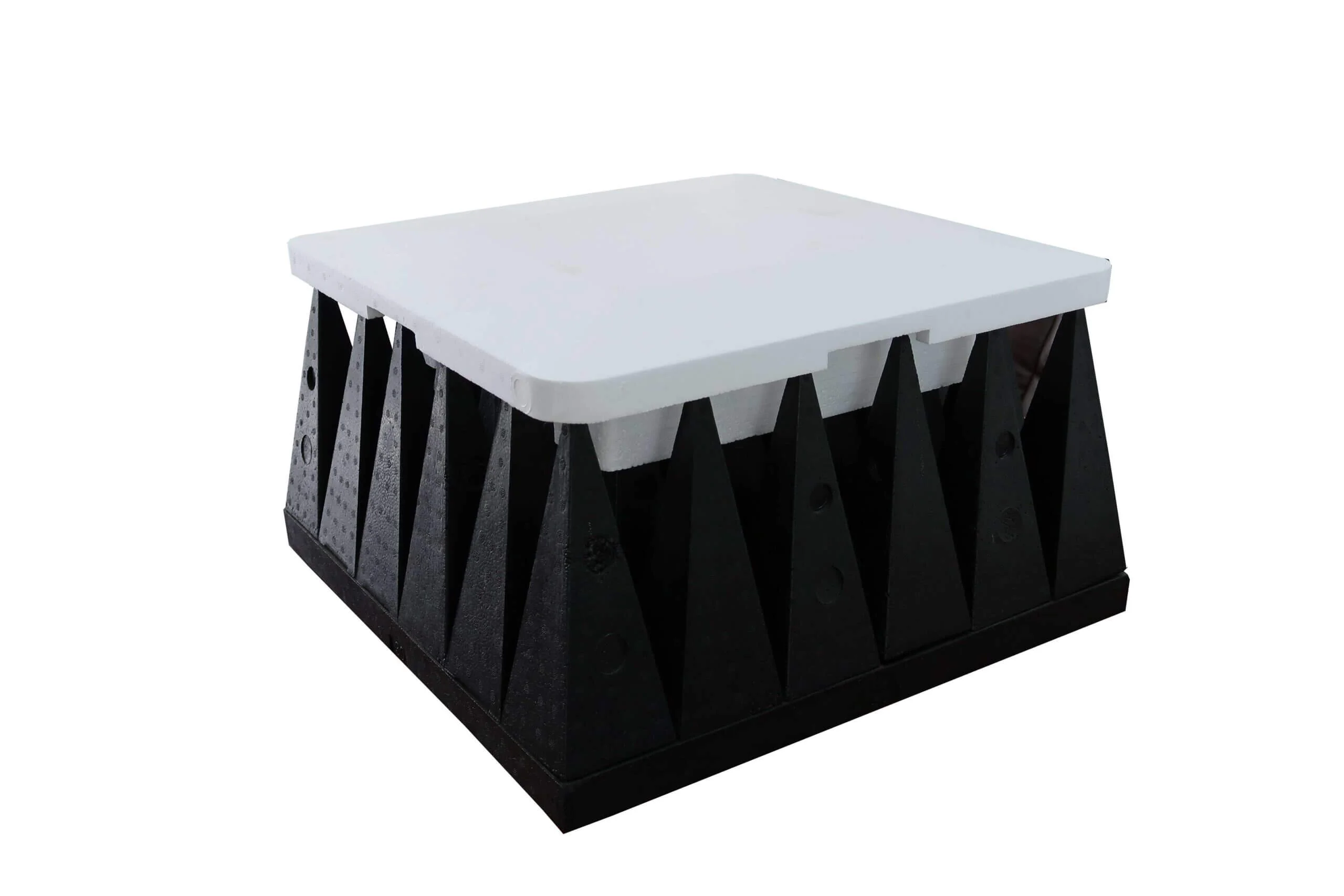

Polypropylene Pyramidal EMC Absorber

High Performance hybrid RF Pyramidal Absorber – Expanded Polypropylene (EPP)

DMC series of Ultra-premium high performance Polypropylene Hybrid Absorbers are made of molding process and the State-of-the-art carbon synthesis process ensures extremely high uniformity of carbon powder density throughout the absorber.

  • Frequency range 30MHz to 40GHz
  • Typical reflectivity as high as -49dB
  • Plug and Pull install
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust
Request Quote
More Details

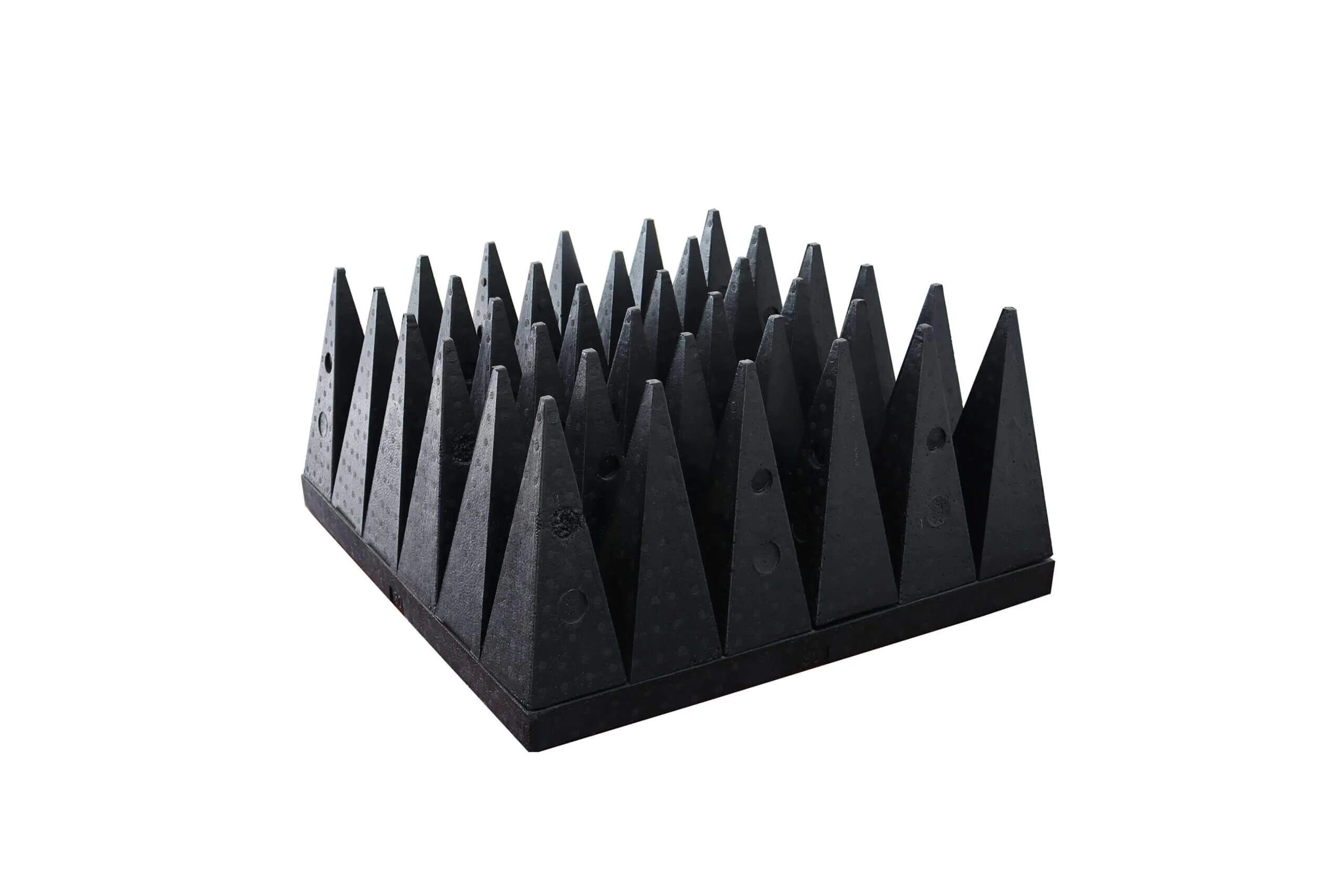

RF Microwave Pyramidal Antenna test Absorber

Broadband High Performance Pyramidal Microwave Absorber – Expanded Polypropylene (EPP)

DMC series of Ultra-premium high performance Polypropylene Microwave Absorbers are made of molding process and State-of-the-art carbon synthesis process to ensure extremely high uniformity of carbon powder density throughout the absorber.

  • Frequency range 80MHz to 100GHz
  • Typical reflectivity as high as -60dB
  • Plug and Pull install
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust
Request Quote
More Details

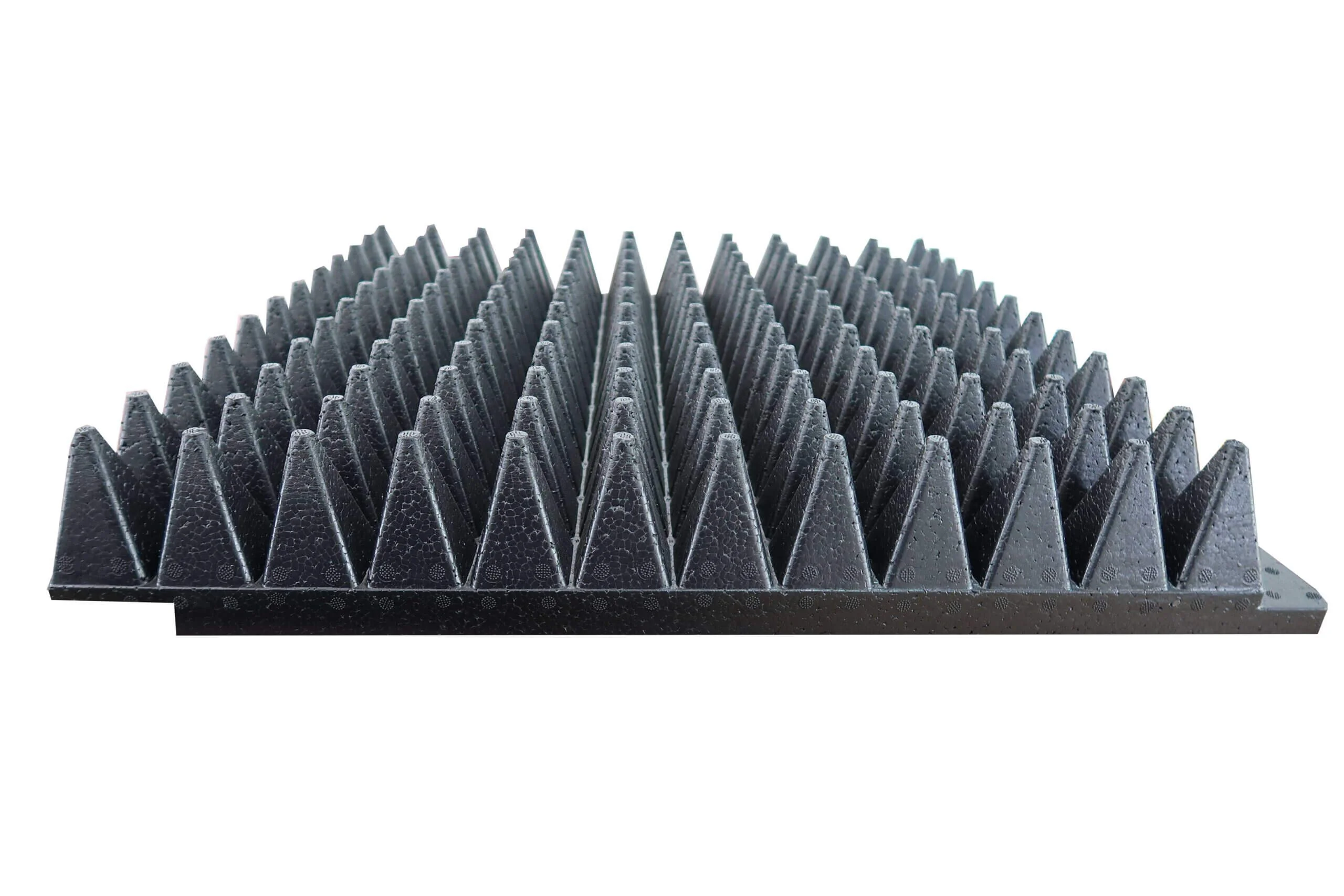

High Power Millimeter wave Pyramidal Absorber

Broadband Pyramidal High frequency mmW (Millimeter wave) EM Absorber – Expanded Polypropylene (EPP)

DMC series of Ultra-premium high performance Polypropylene mmW Absorbers are made of molding process and State-of-the-art carbon synthesis process to ensure extremely high uniformity of carbon powder density throughout the absorber

  • Frequency range 1GHz to 110GHz
  • Typical reflectivity as high as -60dB
  • Plug and Pull install
  • Power handling capacity 4.8kW/m2, 1353 V/m CW Radiated field strength
  • Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
  • Continuous working temperature up-to 120°C
  • Clean Room suitable per ISO 14644 Class5
  • Water Resistant per GB/T 4208-2017
  • RoHS and REACH Compliant
  • Zero Carbon dust
Request Quote
More Details

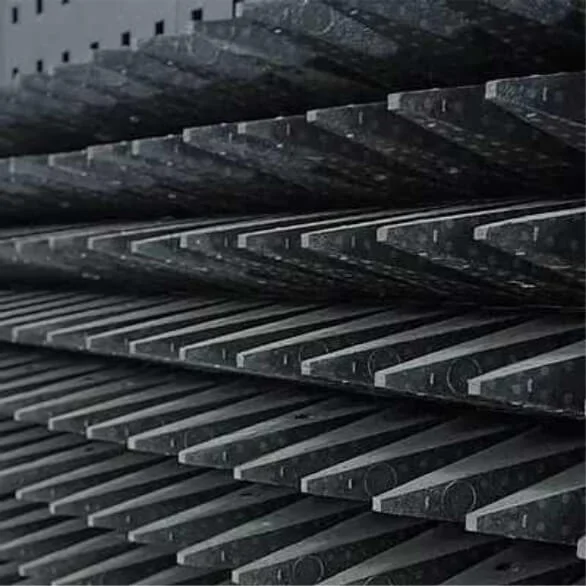

Microwave Absorbing Material

High Performance RF Pyramidal Hybrid Absorber – Expanded Polystyrene (EPS)

DMC premium quality high performance Polystyrene Hybrid Absorbers are made of molding process and the State-of-the-art carbon synthesis process ensures extremely high uniformity of carbon powder density throughout the absorber

  • Frequency range 30MHz to 40GHz
  • Typical reflectivity as high as -42dB
  • Plug and Pull install
  • Power handling capacity 1kW/m2
  • Fire retardant to UL94 HBF, DIN4102-B2, EN11925
  • Continuous working temperature up-to 70°C
  • Clean Room suitable per Class 10000/ ISO 14644-1 Class 4
  • RoHS and REACH Compliant
  • Zero Carbon dust
Request Quote
More Details

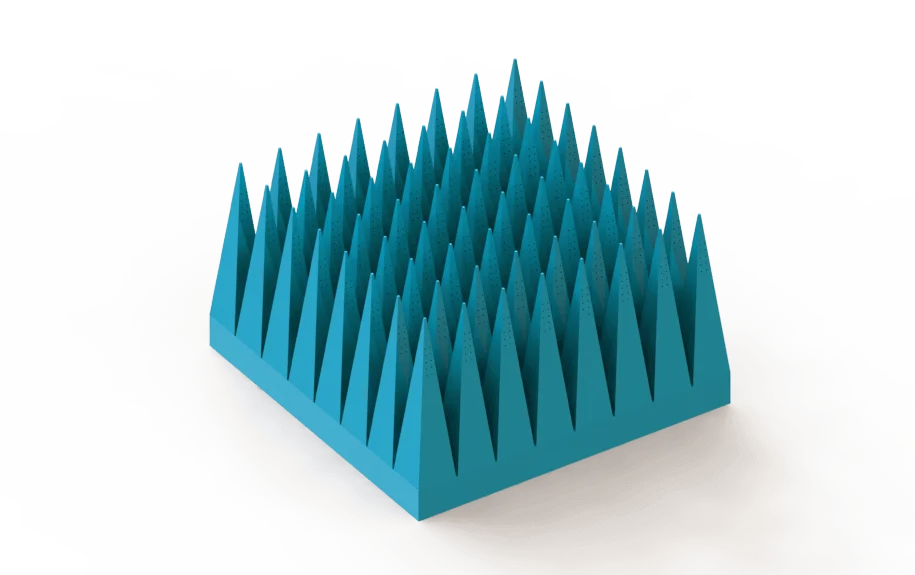

High Power RF absorber 300mm

High Power RF Pyramidal Microwave Absorber – Flame Retardant

DMC offers high performance Flame retardant and High power handling absorbers are hollow broadband microwave absorbers made of
heat resistant non-woven fabric dipped with flame retardants and microwave absorbing agent.

  • Frequency range 30MHz to 100GHz
  • Typical reflectivity as high as -50dB
  • Power handling capacity 6kW/m2
  • Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
  • Continuous working temperature up-to 150°C
  • RoHS Compliant
  • Zero Carbon dust
Request Quote
More Details
