DMC Ultra-premium high performance Ferrite carbon based Hybrid Absorber are made of molding process and the State-of-the-art carbon synthesis process ensures extremely high uniformity of carbon powder density throughout the absorber. DMC-FC-PY-HY series hybrid absorbers provide excellent performance in normal incidence and off angle incidence in EMI/EMC test chambers.

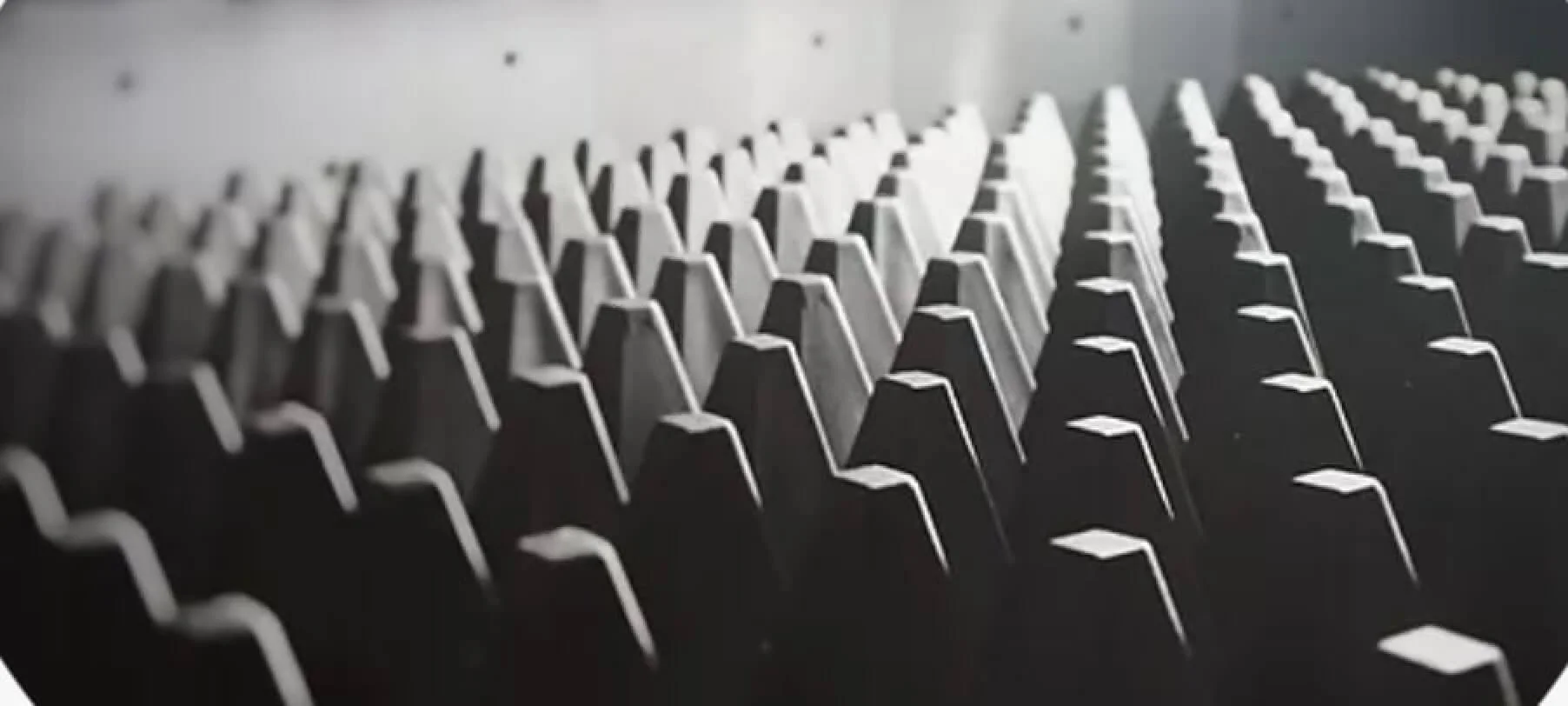

DMC Broadband Ferrite absorbers
DMC Ferrite based electromagnetic wave absorber are used with combination of ferrite tiles. It has operating frequencies from 30 MHz to 40 GHz and thanks to its compact size, the Ferrite Series is suitable for maximizing chamber internal space.
DMC Ferrite tiles for EMC Chamber and Antenna Chamber
DMC Ferrite tiles are precision machined to have almost zero dimensional tolerance which helps in proper alignment of tiles, reduce gap between tiles resulting in better performance and Normalized site attenuation of EMC chambers per ANSI C63.4 and applications per CISPR 16-1-4 and IEC 61000-4-3
| Ferrite absorbers are used to absorb electromagnetic waves and reduce reflections inside EMC and antenna test chambers, ensuring accurate RF measurements. |
| Ferrite absorbers typically operate from 30 MHz to 40 GHz, providing broadband electromagnetic absorption. |
| High-quality ferrite absorbers can provide reflectivity levels up to about −50 dB, depending on frequency and absorber design. |
| Ferrite tiles are mainly effective in the 30 MHz to 1 GHz low-frequency range, where traditional foam absorbers are less effective. |
| Ferrite tiles absorb low frequencies while foam absorbers absorb higher frequencies. Together they create broadband absorption for EMC compliance testing. |
| They are commonly used in EMC chambers designed according to ANSI C63.4, CISPR 16-1-4, and IEC 61000-4-3 testing standards. |
| Typical ferrite absorbers can handle around 1.8 kW/m² RF power, making them suitable for high-power testing environments. |
| Yes. Many ferrite absorbers comply with NRL-8093, UL-94, and DIN fire-safety standards for safe operation in test facilities. |
| Precision machining ensures minimal gaps between tiles, which improves absorption performance and ensures accurate EMC measurements. |
| They reduce RF reflections, create a controlled electromagnetic environment, improve measurement accuracy, and support EMC compliance testing. |
This ferrite absorber system greatly improved the quality of our EMC testing facility. The RF environment is now controlled and stable. A great investment for high-precision measurement laboratories.
These absorbers provide consistent performance from low RF frequencies up to microwave ranges. Our EMC chamber now performs much closer to theoretical conditions. Highly recommended for RF labs.
The tiles were easy to install and align due to their precise machining. The reduced gaps between tiles improved absorption efficiency. Installation was smooth and efficient.
The ferrite absorber panels are extremely durable and well engineered. Even after continuous testing, they maintain stable absorption performance. A dependable solution for high-precision RF testing.
The ferrite tiles integrate perfectly with hybrid foam absorbers. This combination provides wide frequency coverage and reliable EMC chamber performance. A great design for advanced testing environments.
