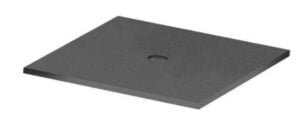

DMC’s EMC Ferrite tiles are precision machined to have almost zero dimensional tolerance which helps in proper alignment of tiles, reduce gap between tiles resulting better performance and Normalized site attenuation of EMC chambers per ANSI C63.4 and applications per CISPR 16-1-4 and IEC 61000-4-3
Part number reference:
DMC-FT-6.7
| 30 MHz | 100 MHz | 300 MHz | 500 MHz | 700 MHz | 1000 MHz | |
| DMC-FT-6.7 | 25.5 | 38 | 19.5 | 16 | 12 | 10 |
| EMC ferrite tiles are electromagnetic absorbing materials used in EMC test chambers to reduce reflections and create a controlled RF testing environment. |
| Ferrite tiles typically operate in the 30 MHz to 1 GHz frequency range, where low-frequency RF absorption is required. |
| High-quality ferrite tiles can provide reflectivity up to approximately −38 dB, depending on frequency and chamber design. |
| They help reduce electromagnetic reflections from chamber walls, ensuring accurate EMC and antenna measurements. |
| Ferrite tiles are usually combined with pyramidal or hybrid absorbers to create broadband absorption across low and high frequencies. |
| They help EMC chambers meet standards such as ANSI C63.4, CISPR 16-1-4, and IEC 61000-4-3. |
| Yes. EMC ferrite tiles are designed with fire-resistant materials suitable for laboratory environments. |

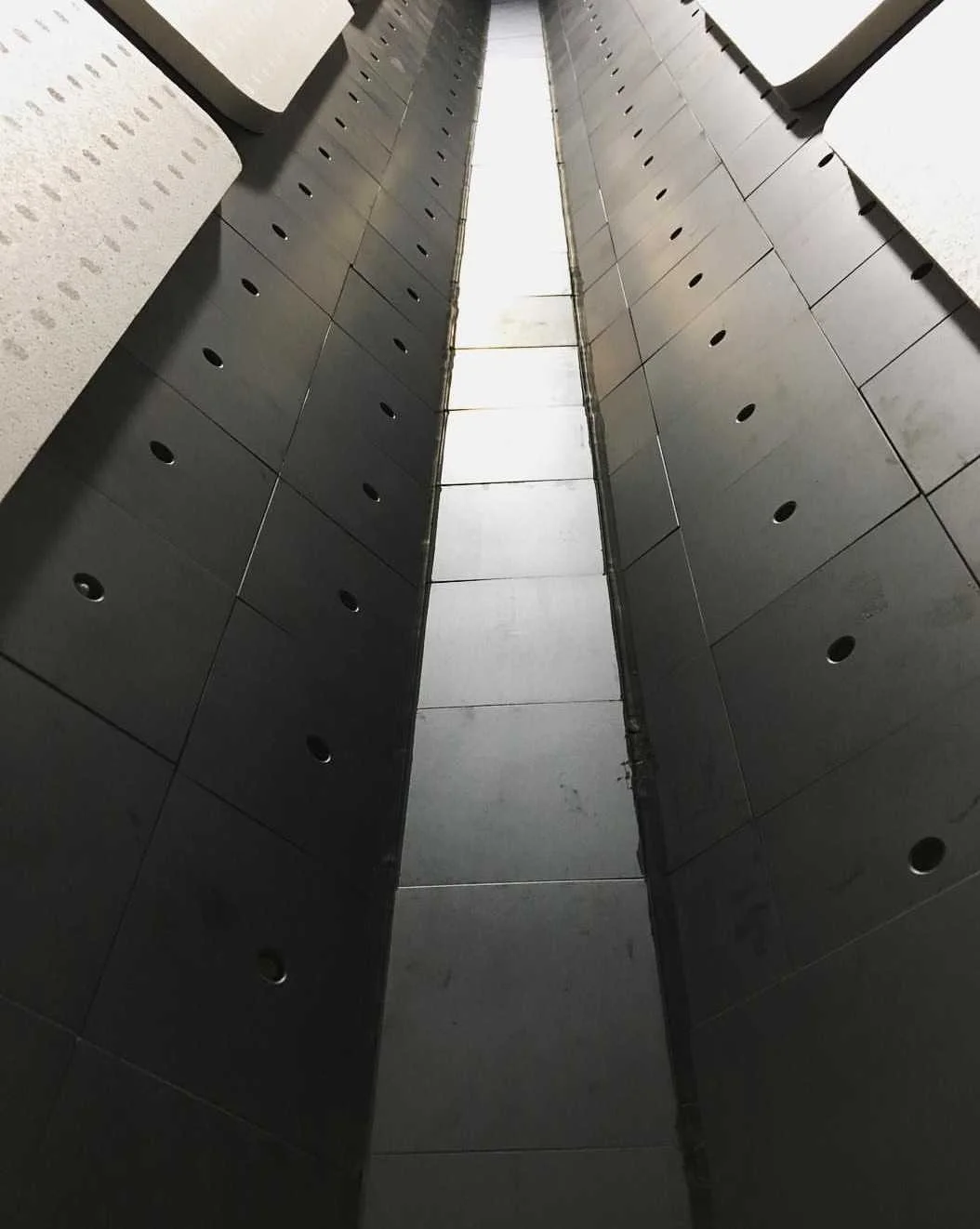

| They are mounted on walls and ceilings using mechanical fixing or adhesive systems to create a continuous absorbing surface. |
| They provide strong low-frequency absorption, reduce reflections, improve measurement accuracy, and enhance EMC chamber performance. |
| By minimizing electromagnetic reflections inside the chamber, ferrite tiles create a stable environment for precise antenna radiation and EMC measurements. |
